Характеристики

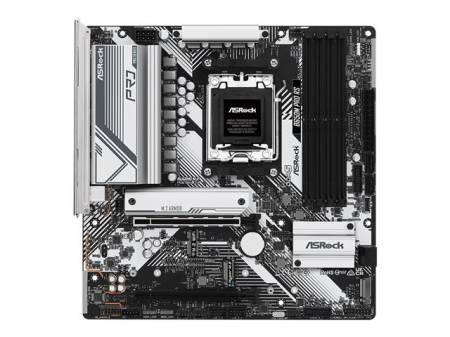

| Product Type (General) | Motherboard - micro ATX |
| Chipset Type (General) | AMD B650 |
| Processor Socket (General) | Socket AM5 |
| Max Processors Qty (General) | 1 |
| Compatible Processors (General) | Ryzen (supports Ryzen 7000 Series) |
| Max Size (Supported RAM) | 128 GB |
| Technology (Supported RAM) | DDR5 |
| Bus Clock (Supported RAM) | 6000 MHz (O.C.) |
| Supported RAM Integrity Check (Supported RAM) | Non-ECC |
| Registered or Buffered (Supported RAM) | Unbuffered |
| Features (Supported RAM) | Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP) |
| Type (Audio) | HD Audio (8-channel) |
| Audio Codec (Audio) | Realtek ALC897 |
| Compliant Standards (Audio) | High Definition Audio |
| Network Controller (LAN) | Dragon RTL8125BG |
| Network Interfaces (LAN) | 2.5 Gigabit Ethernet |
| Expansion Slots (Expansion / Connectivity) | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 3.0 x16 (x4 mode) 1 x M.2 socket (Key E) 3 x M.2 socket (2260/2280 M.2 Key M slot) |
| Storage Interfaces (Expansion / Connectivity) | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 2 x M.2 |
| Interfaces (Expansion / Connectivity) | 1 x USB-C 3.2 Gen 2 1 x USB 3.2 Gen 2 1 x LAN (2.5Gigabit Ethernet) 1 x DisplayPort 1 x HDMI 2 x USB 3.2 Gen 1 4 x USB 2.0 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 2 x aerial |
| Internal Interfaces (Expansion / Connectivity) | 1 x USB-C 3.2 Gen 1 - header 4 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x SPI - header 1 x audio - header 1 x Thunderbolt - header |
| Power Connectors (Expansion / Connectivity) | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type (Features) | AMI |
| BIOS Features (Features) | UEFI BIOS |
| Hardware Features (Features) | 15µ Gold Contact, Hi-Density Power Connectors, Water Pump Header, ASRock Full HD UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, 8+2+1 Phase Power Design, Dr.MOS MOSFET, 6 Layer PCB, 2oz Copper PCB, XXL Aluminum Alloy Heatsink, pre-mounted I/O shield |
| Included Accessories (Miscellaneous) | Standoff for M.2 socket, 4 x M.2 screws |
| Cables Included (Miscellaneous) | 2 x Serial ATA cable |
| Software Included (Miscellaneous) | ASRock A-Tuning, ASRock Dragon 2.5G LAN Software |
| Compliant Standards (Miscellaneous) | DisplayPort 1.4, FCC Part 15 Subpart B, ErP Ready, EuP Ready, UKCA |
| Width (Miscellaneous) | 24.4 cm |
| Depth (Miscellaneous) | 24.4 cm |
