Характеристики

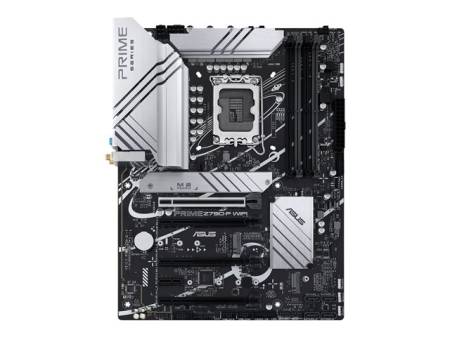

| Product Type (General) | Motherboard - ATX |
| Chipset Type (General) | Intel Z790 |
| Processor Socket (General) | LGA1700 Socket |
| Max Processors Qty (General) | 1 |
| Compatible Processors (General) | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max Size (Supported RAM) | 192 GB |
| Technology (Supported RAM) | DDR5 |
| Bus Clock (Supported RAM) | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.) |
| Supported RAM Integrity Check (Supported RAM) | Non-ECC, on-die ECC |
| Registered or Buffered (Supported RAM) | Unbuffered |
| Features (Supported RAM) | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Type (Audio) | HD Audio (8-channel) |
| Compliant Standards (Audio) | High Definition Audio |
| Network Interfaces (LAN) | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion Slots (Expansion / Connectivity) | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 3 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x1 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) M.2 socket (Key E) |
| Storage Interfaces (Expansion / Connectivity) | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features (Expansion / Connectivity) | Intel Rapid Storage Technology |
| Interfaces (Expansion / Connectivity) | 1 x HDMI 1 x DisplayPort 1 x aerial 1 x USB-C 3.2 Gen2x2 1 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 4 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x PS/2 keyboard / mouse 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack |
| Internal Interfaces (Expansion / Connectivity) | 4 x USB 2.0 - header 4 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2 - header 1 x serial - header 1 x SPI - header 1 x SPDIF out - header 1 x audio - header 1 x Thunderbolt - header |
| BIOS Type (Features) | AMI |
| BIOS Features (Features) | ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up (Features) | Wake on PME, wake on LAN (WOL) |
| Hardware Features (Features) | ASUS OptiMem II, Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), CrashFree BIOS 3, LANGuard, overvoltage protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-LED Core, Q-Slot, M.2 heatsink, VRM heatsink design, ASUS EZ DIY, ASUS ProCool, ASUS Aura Sync, ASUS 5X Protection III, 14+1 Phase Power Design |
| Included Accessories (Miscellaneous) | IO shield, 1 x M.2 rubber package, 2 x M.2 screw package, ASUS Wi-Fi moving aerial |
| Cables Included (Miscellaneous) | 2 x Serial ATA cable |
| Software Included (Miscellaneous) | Armoury Crate, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS TurboV EVO Utility, PC Cleaner, MyAsus, ASUS CPU-Z, Norton 360 Deluxe (60 days trial), WinRAR |
| Width (Miscellaneous) | 30.5 cm |
| Depth (Miscellaneous) | 23.4 cm |
