Характеристики

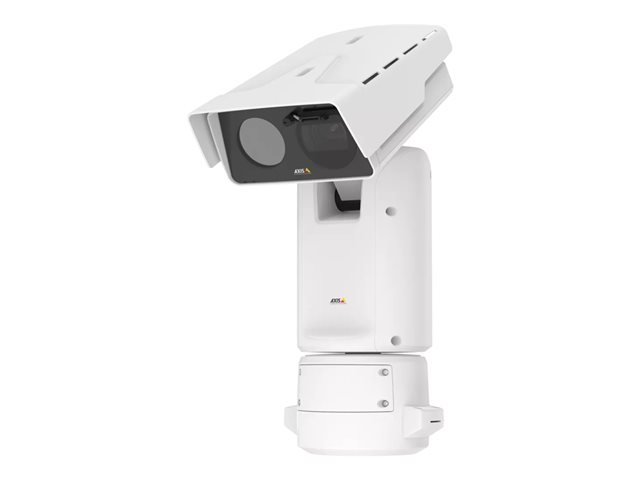

| Device Type (General) | Thermal / network surveillance camera |
| Audio Support (General) | Yes |
| Audio Formats (General) | LPCM, AAC-LC, G.711, PCM, G.726, ADPCM, OPUS |
| Connectivity Technology (General) | Wired |
| Width (General) | 24.4 cm |
| Depth (General) | 36 cm |
| Height (General) | 58.2 cm |
| Weight (General) | 15.1 kg |
| Type (Camera) | Colour - Day&Night - pan / tilt / zoom - outdoor - water resistant / vandal resistant |
| Digital Video Format (Camera) | H.264, H.265, MJPEG, AVC, HEVC |
| Max Digital Video Resolution (Camera) | 1920 x 1080 |
| Motion Detection (Camera) | Yes |
| Video Modes (Camera) | 1080p |
| Digital Zoom (Camera) | 12 |
| Exposure Range (Camera) | 2 sec - 1/66500 sec |
| Minimum Illumination (Camera) | 0.1 lux - colour 0.02 lux - B&W |
| Digital Video Capture Resolution (Camera) | 1920 x 1080, 320 x 180 |
| Frame Rate (max) (Camera) | 30 frames per second |
| Still Image Capture Resolution (Camera) | 1080p |
| RAM (Camera) | 2 GB |
| Flash Memory (Camera) | 512 MB |
| Features (Camera) | Bispectral, dual image stabilization, electronic image stabilisation, TPM 2.0 module, signed firmware, secure boot, Lightfinder 2.0 technology, Forensic WDR, autotracking 2, orientation aid PTZ, Zipstream technology, Audio Detection, Video Motion Detection (VMD), signed OS, Thermal Imaging System, thermal palettes, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, 8 - 14 μm spectral response, removable IR filter, thermal sensitivity 50 mK (NETD), 256 preset positions, guard tour, control queue, focus window, on-screen directional indicator, de-icing control, dynamic load balancing, focus recall, 3x thermal zoom, controllable bandwidth, controllable frame rate, Variable Bitrate (VBR), Adaptive Bitrate (ABR), Multi-Bitrate (MBR), saturation control, contrast control, brightness control, sharpness control, 120 dB wide dynamic range, white balance, day/night threshold, tone mapping, exposure control, exposure zone, defogging, compression, dynamic text overlay, polygon privacy mask, 55 dB signal-to-noise ratio, echo cancelation, noise-cancellation, IP address filtering, HTTPs encryption, 802.1x authentication, Edge Storage, scheduled recording, Live Streaming, Pixel Counter Support, Advanced Gatekeeper, 2KV surge protection, Voltage Transient Protection |
| Type (Image Sensor) | PS CMOS 1/2.8" Uncooled Micro bolometer 640 x 480 (effective) |
| Lens System (Lens Construction) | 4.3 mm - 137.6 mm - automatic adjustment - f/1.4-4.0 - auto iris - 2.4-58.5° (H) / 1.3-34.9° (V) 35 mm - athermalized adjustment (min distance 33 m) - f/1.2 - 17° (H) / 12.8° (V) |
| Optical Zoom (Lens Construction) | 32 x |
| Range (degree) (Panning) | 360 |
| Speed (degree/sec) (Panning) | Up to 120 |
| Range (degree) (Tilting) | -90 to +45 |
| Speed (degree/sec) (Tilting) | Up to 65 |
| Network Interface (Interfaces) | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols (Interfaces) | IPv4, IPv6, USGv6, ICMPv4, ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QOS, FTP, SFTP, CIFS, SMB, SMTP, MDNS, Bonjour, UPnP, SNMP 1, SNMP 2c, SNMP 3, DNS, DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP, RTSPS, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4, DHCPv6, ARP, SSH, NTCIP, LLDP, CDP, MQTT, Syslog, Zeroconf |
| Alarm Inputs Qty (Interfaces) | 4 |
| Alarm Outputs Qty (Interfaces) | 4 |
| Ports (Expansion / Connectivity) | LAN - RJ-45 Audio line-in/microphone - 3.5 mm jack LAN - SFP |
| Supported Memory Cards (Expansion / Connectivity) | microSD Card, microSDHC Card, microSDXC Card |
| Encryption Algorithm (Expansion / Connectivity) | EAP-TLS, PEAP, MSCHAPv2, Dynamic PSK, TLS 1.2, TLS 1.3, PKI, 256-bit AES-XTS-Plain64 |
| Included Accessories (Miscellaneous) | Connector kit, torx bits T20 and T30, connector guard |
| Compliant Standards (Miscellaneous) | IK10, IP66, IEEE 802.1x, EN 55032 Class A, EN55024, EN 61000-6-1, EN 61000-6-2, CISPR 35, EN 50121-4, EN 50498, AS/NZS CISPR 32 Class A, RCM, ICES-003 Class A, NMB-003 Class A, VCCI Class A ITE, KCC KN32 Class A, KCC KN35, FCC Part 15 B Class A, IEC 62236-4, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-22, IEC/EN 60529, IEC 62262, NEMA 250 Type 4X, NEMA TS-2 (2.2.7-2.2.9), ISO 21207 method B, EN 60068-2-1, EN 60068-2-2, EN 60068-2-6, EN 60068-2-14, EN 60068-2-27, EN 60068-2-78, MIL-STD 810H, NIST SP500-267, ETSI EN 303 645, BSI, FIPS 140, IEEE 802.1ae, IEEE 802.1ar, X.509, PVC-free |
| Colour (Miscellaneous) | White, NCS S 1002-B |
| Power Requirements (Power) | DC 20 - 28 V |
| Power Device (Power) | 16 Watt |
| Software Included (Software / System Requirements) | AXIS Fence Guard, AXIS Loitering Guard, AXIS Motion Guard, AXIS Speed Monitor, AXIS Video Motion Detection |
| Service & Support (Manufacturer Warranty) | Limited warranty - 5 years |
| Min Operating Temperature (Environmental Parameters) | -40 °C |
| Max Operating Temperature (Environmental Parameters) | 55 °C |
| Relative Humidity (operating) (Environmental Parameters) | 10 - 100% RH (condensing) |
