Характеристики

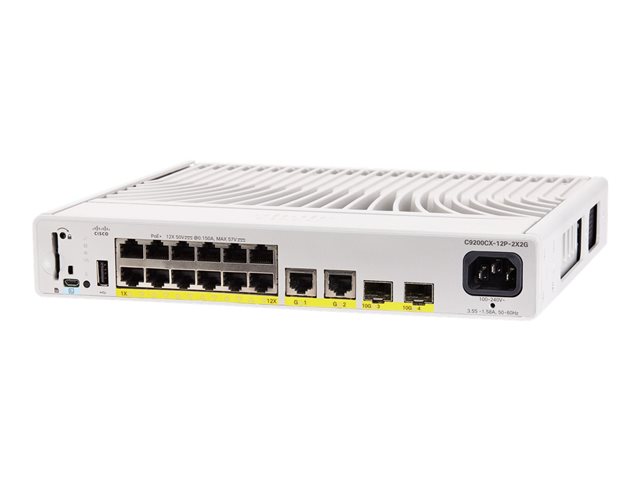

| Device Type (General) | Switch - 12 ports - L3 - Managed |
| Enclosure Type (General) | Rack-mountable 1U |
| Subtype (General) | Gigabit Ethernet |
| Ports (General) | 12 x 10/100/1000 (PoE+) + 2 x 1000Base-T + 2 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) (General) | PoE+ |
| PoE Budget (General) | 240 W |
| Performance (General) | Switching capacity: 120 Gbps Forwarding rate: 95.23 Mpps Packet buffer size: 6 MB |
| Capacity (General) | Virtual networks: 16 IPv4 routes: 14000 Direct IPv4 routes: 10000 Indirect IPv4 routes: 4000 IPv4 routing entries: 4000 IPv6 routing entries: 2000 Multicast scale: 1000 QoS scale entries: 1000 ACL scale entries: 1600 Flexible NetFlow entries: 16000 VLAN IDs: 4096 PVST instances: 128 STP Virtual Ports for PVST: 13000 STP Virtual Ports for MST: 13000 |
| MAC Address Table Size (General) | 32000 entries |
| Jumbo Frame Support (General) | 9198 bytes |
| Routing Protocol (General) | OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, OSPFv3, EIGRP for IPv6, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol (General) | SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, CLI, NETCONF, RESTCONF, YANG |
| Encryption Algorithm (General) | 128-bit AES |
| Features (General) | Fanless, QoS, Rapid PVST+, SRR, PXE support, RSPAN, NetFlow, Energy Efficient Ethernet, MIB, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, CoPP, SPAN, EEM, PIM, FHS, PVLAN support, CIR, ACL support |
| Compliant Standards (General) | IEEE 802.3, IEEE 802.3at, IEEE 802.3af, IEEE 802.1s, IEEE 802.1w, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1ae |
| RAM (General) | 4 GB |
| Flash Memory (General) | 8 GB |
| Built-in Devices (General) | RFID tag |
| Status Indicators (General) | Power |
| Interfaces (Expansion / Connectivity) | 12 x 1000Base-T RJ-45 PoE+ - 30 W 2 x 1000Base-T RJ-45 2 x 10GBase-X SFP+ uplink 1 x USB 2.0 1 x console (micro-USB) |
| Expansion Slots (Expansion / Connectivity) | 1 (total) / 1 (free) x SD Memory Card |
| Power Device (Power) | Internal power supply |
| Power Provided (Power) | 310 Watt |
| Voltage Required (Power) | AC 100-240 V (50/60 Hz) |
| MTBF (Miscellaneous) | 553,140 hours |
| Compliant Standards (Miscellaneous) | Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
| Width (Dimensions & Weight) | 26.9 cm |
| Depth (Dimensions & Weight) | 24.4 cm |
| Height (Dimensions & Weight) | 4.4 cm |
| Weight (Dimensions & Weight) | 2.99 kg |
| Service & Support (Manufacturer Warranty) | Limited warranty - replacement - lifetime - response time: next business day Technical support - consulting - 90 days |
| Min Operating Temperature (Environmental Parameters) | -5 °C |
| Max Operating Temperature (Environmental Parameters) | 45 °C |
| Humidity Range Operating (Environmental Parameters) | 5 - 90% (non-condensing) |
| Min Storage Temperature (Environmental Parameters) | -40 °C |
| Max Storage Temperature (Environmental Parameters) | 70 °C |
| Humidity Range Storage (Environmental Parameters) | 5 - 90% (non-condensing) |
