24-портов Gigabit Stackable L3 управляем

Запитай

Сравни

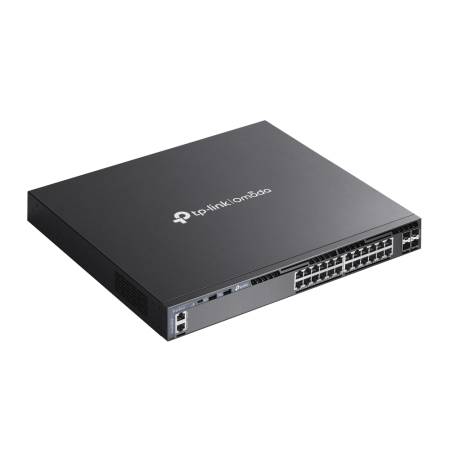

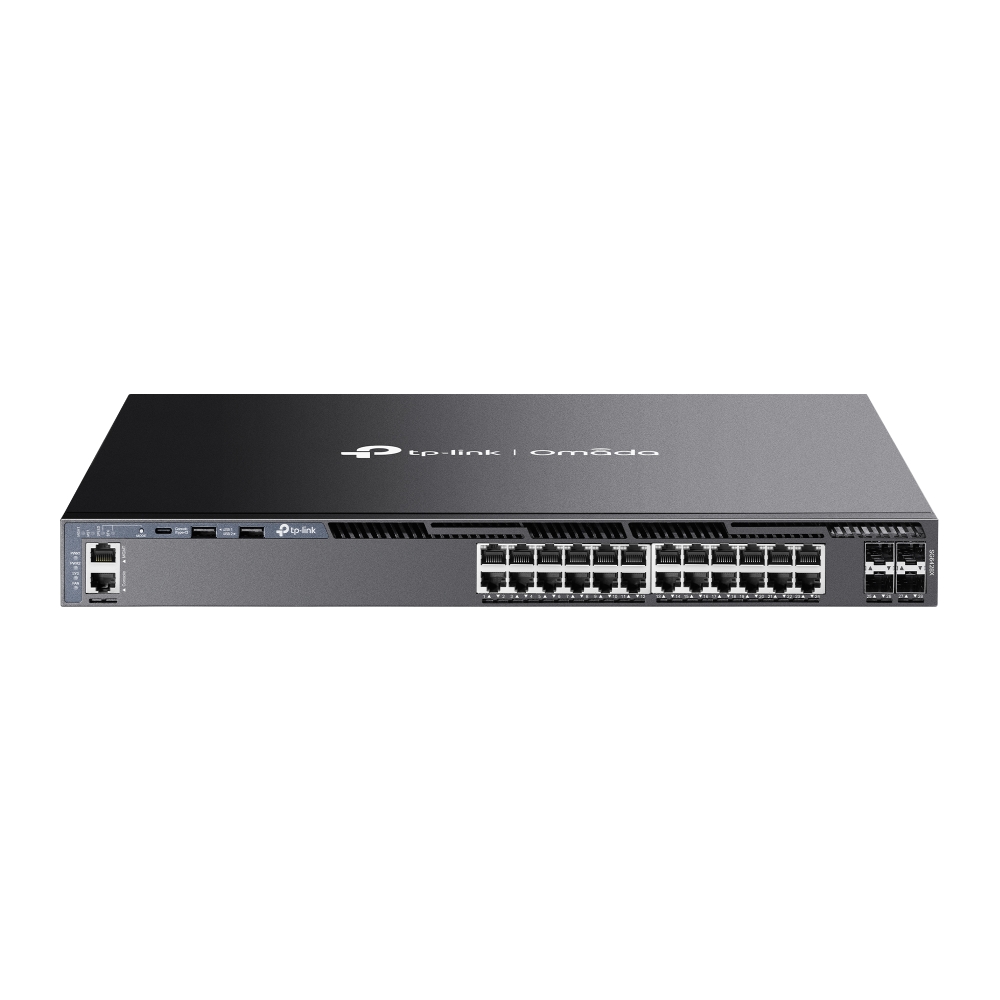

24-портов Gigabit Stackable L3 управляем комутатор TP-Link Omada SG6428X с 4 10G слота

Наличност: на склад

4 096.17лв. с ДДС

Продуктов код: SG6428X_VZ

Добави

Характеристики

L3 Switching Features	VRRP: Version v2/v3, Max 64 groups
Размери ширина	440 mm
L2 Switching Features	IGMP Snooping
Софтуерни функции	Quality of Service
Работна температура	-5 °C to 50 °C (23 °F to 122 °F) @ 300 meters
L2 Switching Features	802.3x Flow Control
L3 Switching Features	Max 1,024, IPv6: Max 512
L3 Switching Features	Static Routing
L2 Switching Features	Multicast
L2 Switching Features	Spanning Tree Protocol
L2 Switching Features	L2 Multicast Table
L3 Switching Features	Max 1,000 Manual Binding Entries
Продукт на промоция	N
Ethernet портове	1× RJ45 Management Port
Ethernet портове	1× RJ45 Console Port
L3 Switching Features	Static ARP: 512 static entries
L3 Switching Features	IPv4: Max 256, IPv6: Max 256
VLAN	VLAN VPN (QinQ): Max 256 entries
VLAN	GVRP
Влажност на съхранение	10%~90% без кондензация
VLAN	VLAN VPN (QinQ)
Критерии за валидност на гаранцията	Гаранционна карта/Сериен номер
Интерфейс	4× 10G SFP+ Slots
Brand	TP-LINK
L3 Switching Features	RIP: Version v1/v2, Max 8,190
L3 Switching Features	IP Interfaces:
Експлоатационни качества	Table of MAC addresses 32 K
Експлоатационни качества	Stacking Number: 4
Ethernet портове	4× 10G SFP+ Slots
Интерфейс	1× USB Type-C Console Port
Ethernet портове	24× 10/100/1000 Mbps RJ45 Ports
Работна температура	-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters
Работна влажност	10%~90% без кондензация
L3 Switching Features	Relayed VLAN
Интерфейс	2× USB 2.0 Ports
L2 Switching Features	Port-based and VLAN-based Loopback Detection
L2 Switching Features	Multicast Filtering
VLAN	MAC VLAN Entries: 200
Quality of Service	Bandwidth Control
Размери височина	44 mm
L3 Switching Features	Host Route Table: Max 6,100 entries
Quality of Service	Action for Flows
Интерфейс	1× RJ45 Management Port
Експлоатационни качества	Switching capacity 128 Gbps per Unit
Филтър Swich - PoE, SFP	SFP+ slots
L3 Switching Features	Relayed Interface
L2 Switching Features	Fast Leave
Наличност	Ограничена - под 10 бр.
L2 Switching Features	Static Link Aggregation
L2 Switching Features	MAC Address Table
Quality of Service	User-Defined OUI
L2 Switching Features	PIM-DM, PIM-SM (IPv4)
L3 Switching Features	ECMP: 256 entries, max 32 ECMP Nexthops per Destination
L3 Switching Features	Proxy ARP
L3 Switching Features	Dynamic ARP: 7,680 dynamic entries
Филтър Swich	24 порта
VLAN	Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
L2 Switching Features	MLD Snooping
Софтуерни функции	Advanced Features
Софтуерни функции	Security
Системни изисквания	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
L2 Switching Features	Supports 2,048 IGMP groups
Интерфейс	24× 10/100/1000 Mbps RJ45 Ports
L3 Switching Features	OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097
VLAN	Max. 4K VLAN Groups
L2 Switching Features	Static Multicast IP
Експлоатационни качества	Packet Buffer Memory 3MB
Софтуерни функции	VLAN
Quality of Service	Class of Service
Софтуерни функции	L3 Features
Размери дълбочина	380 mm
L3 Switching Features	DHCP Server:
VLAN	802.1q Tagged VLAN
Работна температура	-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
Вид на монтаж	Rackmount
Quality of Service	Smoother Performance
L3 Switching Features	Max 64 IP Pools
L3 Switching Features	DHCP Server/Relay
L2 Switching Features	RSPAN
L2 Switching Features	Multicast VLAN Registration (MVR)
Гаранция	60 месеца
Експлоатационни качества	Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
Софтуерни функции	L2 and L2+ Features
L2 Switching Features	ERPS
Интерфейс	1× RJ45 Console Port
VLAN	Private VLAN
VLAN	Management VLAN
Quality of Service	Voice VLAN
VLAN	Voice VLAN
Захранване	Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)
Експлоатационни качества	Jumbo Frame 9 KB
VLAN	Multicast VLAN
