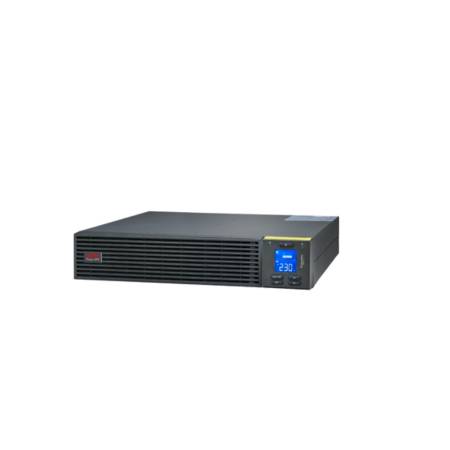

Device Type (General) | UPS - Power Factor Correction (PFC) - rack-mountable |
Height (Rack Units) (General) | 2U |
Colour (General) | Black, RAL 7010 |
Localisation (General) | Europe |
UPS Technology (Power Device) | On-line |
Input Voltage (Power Device) | AC 220/230/240 V |
Input Voltage Range (Power Device) | AC 110 - 285 V |
Frequency Provided (Power Device) | 50/60 Hz ± 3Hz |
Input Wiring (Power Device) | 1-phase |
Frequency Required (Power Device) | 40 - 70 Hz |

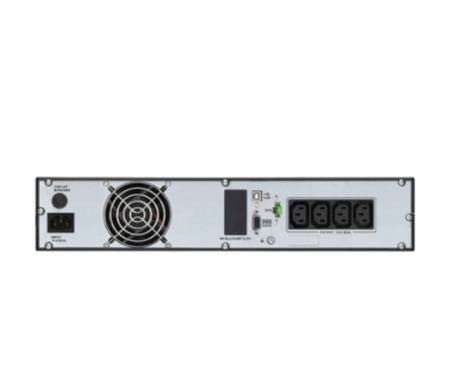

Input Connectors (Power Device) | 1 x power IEC 60320 C14 |
Power Output Connectors Details (Power Device) | 4 x power IEC 60320 C13 |
Output Voltage (Power Device) | AC 220/230/240 V 50/60 Hz |
Power Capacity (Power Device) | 1800 Watt / 2000 VA |
Output Waveform (Power Device) | Sinewave |
Surge Suppression (Power Device) | Yes |
Surge Energy Rating (Power Device) | 945 Joules |
Circuit Protection (Power Device) | Circuit breaker |
Efficiency (Power Device) | 88% at 100% Load, 94% Eco mode |
Total Harmonic Distortion (THD) (Power Device) | 3 % |
Technology (Battery) | Lead Acid |
Voltage Provided (Battery) | 48 V |
Run Time (Up To) (Battery) | 3.04 min at 1800 Watts |
Recharge Time (Battery) | 4 hours |
Features (Battery) | Maintenance free, sealed, leak-proof |
Remote Management Interface (Networking) | USB, serial |
Interfaces (Expansion / Connectivity) | USB Serial |
Expansion Slots (Expansion / Connectivity) | Intelligent Slot |

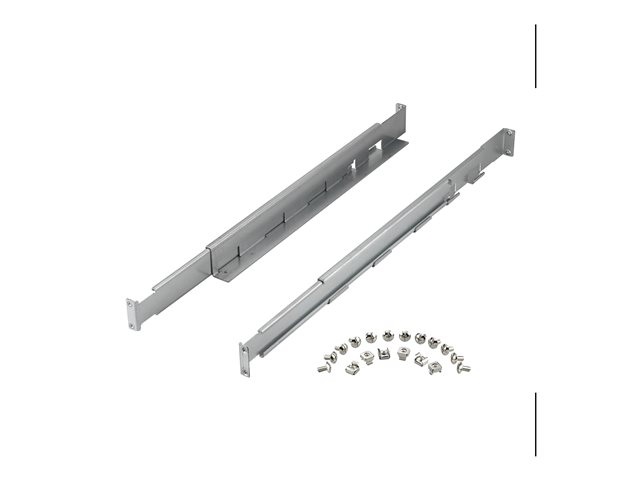

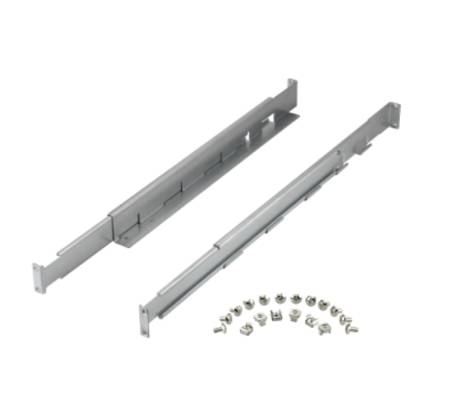

Included Accessories (Miscellaneous) | Rail kit |
Cables Included (Miscellaneous) | Power cable 1.5 m USB cable - external Serial cable - external Power cable (C13-C14) - external Power cable (C13) - external |
Rack Mounting Kit (Miscellaneous) | Included |
Features (Miscellaneous) | Horizontal orientation, audible alarm, emergency power off, LCD display, internal bypass, Eco-Mode, generator compatible, Intelligent Battery Management, double conversion, low battery alarm, overload alarm |
Compliant Standards (Miscellaneous) | WEEE, REACH, IP20, China RoHS, TISI, EN 62040-2:2006+AC:2006, EU RoHS, UKCA, EN/IEC 62040-2:2018, heavy metals-free, EN IEC 62040-1:2019 + A11:2021 |
Service & Support (Manufacturer Warranty) | Limited warranty - replace or repair - 2 years |
Min Operating Temperature (Environmental Parameters) | 0 °C |
Max Operating Temperature (Environmental Parameters) | 40 °C |
Humidity Range Operating (Environmental Parameters) | 0 - 95% RH (non-condensing) |
Sound Emission (Environmental Parameters) | 50 dBA |
Width (Dimensions & Weight) | 43.8 cm |
Depth (Dimensions & Weight) | 46.2 cm |
Height (Dimensions & Weight) | 8.6 cm |
Weight (Dimensions & Weight) | 18.8 kg |
Shipping Width (Dimensions & Weight (Shipping)) | 70 cm |
Shipping Depth (Dimensions & Weight (Shipping)) | 55 cm |
Shipping Height (Dimensions & Weight (Shipping)) | 21.8 cm |
Shipping Weight (Dimensions & Weight (Shipping)) | 22.5 kg |
