Характеристики

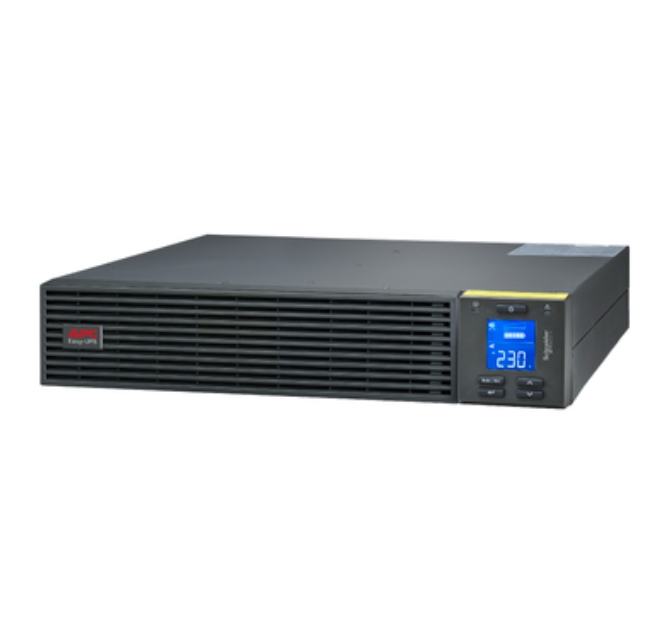

| Device Type (General) | UPS - rack-mountable |
| Height (Rack Units) (General) | 2U |
| Cord Length (General) | 1.5 m |
| Colour (General) | RAL 7010, black |
| UPS Technology (Power Device) | On-line |
| Input Voltage (Power Device) | AC 230 V |
| Input Voltage Range (Power Device) | AC 110 - 285 V |
| Frequency Provided (Power Device) | 50/60 Hz ± 3Hz |
| Frequency Required (Power Device) | 40 - 70 Hz |
| Input Connectors (Power Device) | 1 x power IEC 60320 C20 |
| Power Output Connectors Details (Power Device) | 6 x power IEC 60320 C13 1 x power IEC 60320 C19 |
| Output Voltage (Power Device) | AC 220/230/240 V 50/60 Hz |
| Power Capacity (Power Device) | 2700 Watt / 3000 VA |
| Output Waveform (Power Device) | Sinewave |
| Surge Energy Rating (Power Device) | 945 Joules |
| Efficiency (Power Device) | 88% at 100% Load |
| Total Harmonic Distortion (THD) (Power Device) | 3 % |
| Technology (Battery) | Lead Acid |
| Voltage Provided (Battery) | 72 V |
| Recharge Time (Battery) | 4 hours |
| Remote Management Interface (Networking) | RS-232, USB |
| Interfaces (Expansion / Connectivity) | 1 x management (USB) - 4 pin USB Type B 1 x management (RS-232) - 9 pin D-Sub (DB-9) 1 x EPO (emergency power off) |
| Expansion Slots (Expansion / Connectivity) | 1 (total) / 1 (free) x Intelligent Slot |

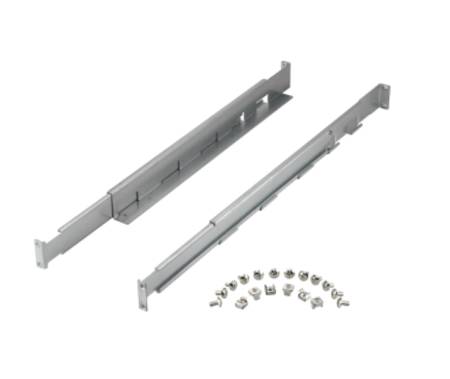

| Included Accessories (Miscellaneous) | Rack mounting brackets, rack mounting rails |
| Cables Included (Miscellaneous) | Power cable (C19-CEE 7/4) Power cable (C13-C14) USB cable RS-232 cable |
| Rack Mounting Kit (Miscellaneous) | Included |
| Features (Miscellaneous) | 1024 BTU/h heat dissipation, PCE package, internal bypass, double conversion, LCD display, low battery alarm, overload alarm |
| Compliant Standards (Miscellaneous) | UKCA, TISI, EN 62040-2:2006+AC:2006, EN IEC 62040-1:2019 + A11:2021, EN/IEC 62040-2:2018, IP20, REACH, China RoHS, WEEE |
| Service & Support (Manufacturer Warranty) | Limited warranty - replace or repair - 2 years |
| Min Operating Temperature (Environmental Parameters) | 0 °C |
| Max Operating Temperature (Environmental Parameters) | 40 °C |
| Humidity Range Operating (Environmental Parameters) | 0 - 95% (non-condensing) |
| Sound Emission (Environmental Parameters) | 50 dBA |
| Width (Dimensions & Weight) | 43.8 cm |
| Depth (Dimensions & Weight) | 63.2 cm |
| Height (Dimensions & Weight) | 8.6 cm |
| Weight (Dimensions & Weight) | 28.5 kg |
| Shipping Weight (Dimensions & Weight (Shipping)) | 32.5 kg |
