Характеристики

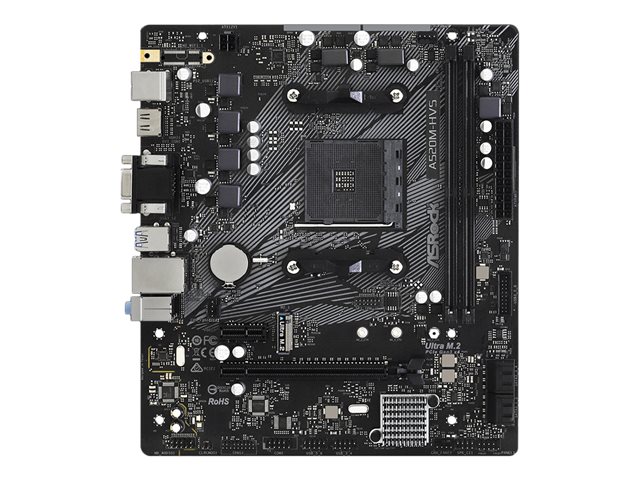

| Product Type (General) | Motherboard - micro ATX |
| Chipset Type (General) | AMD A520 |
| Processor Socket (General) | Socket AM4 |
| Max Processors Qty (General) | 1 |
| Compatible Processors (General) | Ryzen (supports 3rd Generation Ryzen) |
| Max Size (Supported RAM) | 64 GB |
| Technology (Supported RAM) | DDR4 |
| Bus Clock (Supported RAM) | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3200 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4200 MHz (O.C.), 4266 MHz (O.C.), 4333 MHz (O.C.), 4400 MHz (O.C.), 4466 MHz (O.C.), 4533 MHz (O.C.), 4600 MHz (O.C.) |
| Supported RAM Integrity Check (Supported RAM) | Non-ECC, ECC |
| Registered or Buffered (Supported RAM) | Unbuffered |
| Features (Supported RAM) | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Allocated RAM Size (Graphics) | 16 GB |
| Type (Audio) | HD Audio (8-channel) |
| Audio Codec (Audio) | Realtek ALC887 |
| Compliant Standards (Audio) | High Definition Audio |
| Network Controller (LAN) | Realtek RTL8111H |
| Network Interfaces (LAN) | Gigabit Ethernet |
| Expansion Slots (Expansion / Connectivity) | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 3.0 x16 1 x PCIe 3.0 x1 |
| Storage Interfaces (Expansion / Connectivity) | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2 |
| Interfaces (Expansion / Connectivity) | 1 x VGA 4 x USB 3.2 Gen 1 1 x HDMI 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x PS/2 keyboard / mouse 2 x USB 2.0 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces (Expansion / Connectivity) | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x serial - header 1 x audio - header |
| Power Connectors (Expansion / Connectivity) | 4-pin ATX12V connector, 24-pin main power connector |
| BIOS Type (Features) | AMI |
| BIOS Features (Features) | JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support |
| Hardware Monitoring (Features) | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, opened case detection |
| Sleep / Wake Up (Features) | Wake on LAN (WOL) |
| Hardware Features (Features) | ASRock Super Alloy, Premium 50A Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB, ASRock Ultra M.2, ASRock Full Spike Protection, ASRock APP Shop, ASRock Live Update, 6 Phase Power Design, 15µ Gold Contact, Triple Monitor, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ESD Protection, ASRock Full HD UEFI, ASRock Instant Flash, All-Solid Capacitor motherboard Design |
| Included Accessories (Miscellaneous) | I/O back plate, 1 x M.2 screw |
| Cables Included (Miscellaneous) | 2 x Serial ATA cable |
| Software Included (Miscellaneous) | Drivers & Utilities, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock A-Tuning, ASRock XFast LAN |
| Compliant Standards (Miscellaneous) | FCC, EuP Ready, ErP Ready |
| Width (Miscellaneous) | 23 cm |
| Depth (Miscellaneous) | 20.1 cm |
