| Серия |
PRO |
| Процесор |
AMD AM5 Ryzen 7000 |
| Чипсет |
AMD B650 |
| BIOS |
256Mb AMI UEFI Legal BIOS with GUI support |
| Памет, слотове |
4 x DDR5 DIMM Slots; Max. capacity of system memory: 128GB |
| Аудио |
7.1 CH HD Audio (Realtek ALC897 Audio Codec); Nahimic Audio |
| Мрежа |
2.5 Gigabit LAN 10/100/1000/2500 Mb/s; Dragon RTL8125BG; Supports Dragon 2.5G LAN Software |
| Конектори |
SPI TPM Header; Power LED and Speaker Header; 24 pin ATX Power Connector; 8 pin 12V Power Connector; 4 pin 12V Power Connector; Front Panel Audio Connector; Thunderbolt AIC Connector; 2 x USB 2.0 Headers; USB 3.2 Gen1 Header; Type C USB 3.2 |
| Слотове |
CPU: PCIe 4.0 x16 Slot, PCIe 3.0 x16 Slot; Chipset: PCIe 4.0 x1 Slot |
| M.2 слот |
M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Интерфейс |

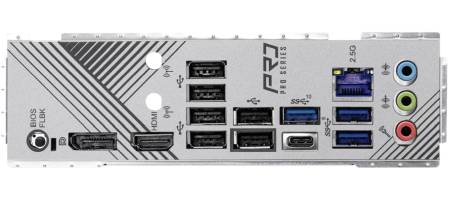

2 x Antenna Mounting Points; HDMI Port; DisplayPort 1.4; USB 3.2 Gen2 Type-A; USB 3.2 Gen2 Type-C; 2 x USB 3.2 Gen1 Ports; 6 x USB 2.0 Ports; RJ-45 LAN Port; BIOS Flashback Button; HD Audio Jacks: Line in / Front Speaker / Microphone |
| Софтуер |
ASRock Motherboard Utility (A-Tuning); ASRock Dragon 2.5G LAN Software; ASRock Polychrome SYNC |
| Операционна система |
Microsoft Windows 10 64-bit/11 64-bit |
| Форм-фактор |
ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| Специални функции |
Superb Productivity, Rock-Solid Durability, Ultrafast Connectivity, EZ Troubleshooter |
