Характеристики

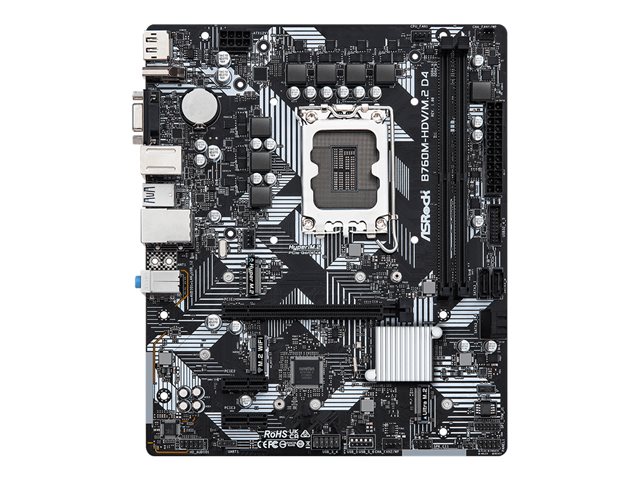

| Product Type (General) | Motherboard - micro ATX |
| Chipset Type (General) | Intel B760 |
| Processor Socket (General) | LGA1700 Socket |
| Max Processors Qty (General) | 1 |
| Compatible Processors (General) | (supports 12th and 13th Generation Intel Core) |
| Max Size (Supported RAM) | 64 GB |
| Technology (Supported RAM) | DDR4 |
| Bus Clock (Supported RAM) | 5333 MHz (O.C.) |
| Supported RAM Integrity Check (Supported RAM) | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered (Supported RAM) | Unbuffered |
| Features (Supported RAM) | Dual channel memory architecture, supported ECC modules operate in non-ECC mode, Intel Extreme Memory Profiles (XMP) 2.0 |
| Type (Audio) | HD Audio (8-channel) |
| Audio Codec (Audio) | Realtek ALC887/ALC897 |
| Compliant Standards (Audio) | High Definition Audio |
| Network Controller (LAN) | Realtek RTL8111H |
| Network Interfaces (LAN) | Gigabit Ethernet |
| Expansion Slots (Expansion / Connectivity) | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 1 x M.2 socket (2230 M.2 Key E slot) 2 x M.2 socket (2260/2280 M.2 Key M slot) |
| Storage Interfaces (Expansion / Connectivity) | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x M.2 SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces (Expansion / Connectivity) | 1 x PS/2 keyboard / mouse 1 x VGA 1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen 1 3 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (Gigabit Ethernet) 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack |
| Internal Interfaces (Expansion / Connectivity) | 2 x USB 3.2 Gen 1 - header 3 x USB 2.0 - header 1 x SPI - header 1 x speaker - header 1 x audio - header |
| Power Connectors (Expansion / Connectivity) | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type (Features) | AMI |
| BIOS Features (Features) | UEFI BIOS |
| Hardware Features (Features) | 5+1+1 Phase Power Design, ASRock Auto Driver Installer, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT), ESD Protection, ASRock Easy RAID Installer, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Instant Flash, ASRock My Favorites in UEFI |
| Included Accessories (Miscellaneous) | IO shield, 3 x M.2 screws |
| Cables Included (Miscellaneous) | 2 x Serial ATA cable |
| Software Included (Miscellaneous) | ASRock A-Tuning, ASRock XFast LAN |
| Compliant Standards (Miscellaneous) | HDCP 2.3, DisplayPort 1.4, FCC, ErP Ready, EuP Ready |
| Width (Miscellaneous) | 24.4 cm |
| Depth (Miscellaneous) | 20.1 cm |
