Характеристики

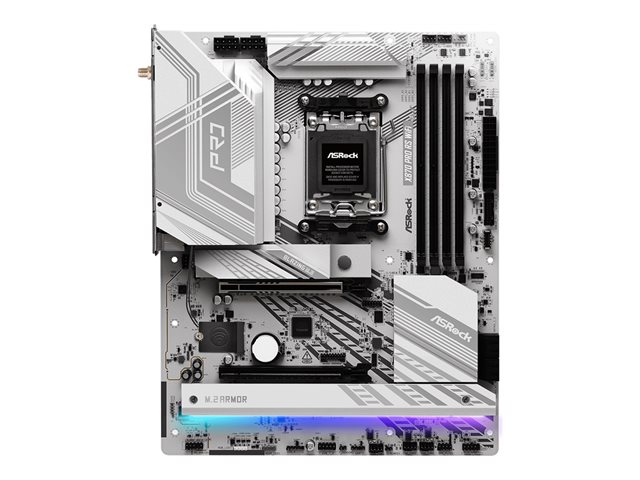

| Product Type (General) | Motherboard - ATX |
| Chipset Type (General) | AMD X870 |
| Processor Socket (General) | Socket AM5 |
| Max Processors Qty (General) | 1 |
| Compatible Processors (General) | (supports Ryzen 7000/8000/9000 Series) |
| Max Size (Supported RAM) | 256 GB |
| Technology (Supported RAM) | DDR5 |
| Bus Clock (Supported RAM) | 8000 MHz (O.C.) |
| Supported RAM Integrity Check (Supported RAM) | Non-ECC, ECC |
| Registered or Buffered (Supported RAM) | Unbuffered |
| Features (Supported RAM) | Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP) |
| Type (Audio) | HD Audio (8-channel) |
| Audio Codec (Audio) | Realtek ALC1220 |
| Compliant Standards (Audio) | High Definition Audio |
| Network Controller (LAN) | Dragon RTL8125BG |
| Network Interfaces (LAN) | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Expansion Slots (Expansion / Connectivity) | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x M.2 socket (2230 M.2 Key E slot) 2 x M.2 socket (2280 M.2 Key M slot) 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces (Expansion / Connectivity) | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 PCIe 4.0 -connectors: 1 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -connectors: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2 - RAID 0 / RAID 1 / RAID 10 |
| Interfaces (Expansion / Connectivity) | 2 x aerial 1 x HDMI 1 x SPDIF out 2 x Thunderbolt 4/DisplayPort/USB4 4 x USB 3.2 Gen 1 6 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x microphone - mini-jack |
| Internal Interfaces (Expansion / Connectivity) | 3 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2x2 - header 1 x audio - header 1 x speaker - header |
| Power Connectors (Expansion / Connectivity) | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| BIOS Type (Features) | AMI |
| BIOS Features (Features) | UEFI BIOS |
| Hardware Features (Features) | ASRock EZ Mode, ASRock Full HD UEFI, ASRock Instant Flash, ASRock Auto Driver Installer, 8 Layer PCB, 14+2+1 Phase Power Design, Enlarged Heatsink Armor, pre-mounted I/O shield, BIOS FlashBack button, ASRock POST Status Checker (PSC), DIY Friendly Design, M.2 heatsink, enlarged M.2 heatsink, Nahimic Audio Enhacer, ASRock Polychrome RGB, reinforced PCIe slots, VRM heatsink design |
| Included Accessories (Miscellaneous) | 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
| Cables Included (Miscellaneous) | 2 x Serial ATA cable |
| Software Included (Miscellaneous) | ASRock A-Tuning, ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC |
| Compliant Standards (Miscellaneous) | HDCP 2.3, ErP Ready, EuP Ready, FCC |
| Width (Miscellaneous) | 30.5 cm |
| Depth (Miscellaneous) | 24.4 cm |
