Характеристики

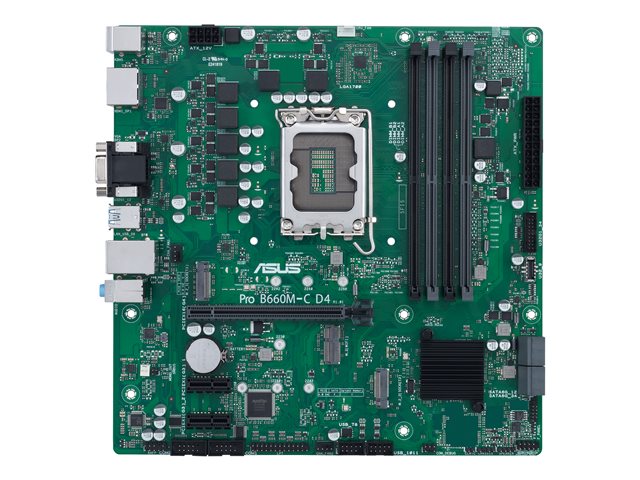

| Product Type (General) | Motherboard - micro ATX |
| Chipset Type (General) | Intel B660 |
| Processor Socket (General) | LGA1700 Socket |
| Max Processors Qty (General) | 1 |
| Compatible Processors (General) | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max Size (Supported RAM) | 128 GB |
| Technology (Supported RAM) | DDR4 |
| Bus Clock (Supported RAM) | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 4000 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.) |
| Supported RAM Integrity Check (Supported RAM) | Non-ECC |
| Registered or Buffered (Supported RAM) | Unbuffered |
| Features (Supported RAM) | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Type (Audio) | HD Audio (8-channel) |
| Compliant Standards (Audio) | High Definition Audio |
| Network Interfaces (LAN) | Gigabit Ethernet |
| Expansion Slots (Expansion / Connectivity) | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces (Expansion / Connectivity) | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 |
| RAID Features (Expansion / Connectivity) | Intel Rapid Storage Technology |
| Interfaces (Expansion / Connectivity) | 1 x HDMI 2 x DisplayPort 1 x VGA 1 x LAN (Gigabit Ethernet) 2 x USB 3.2 Gen 1 2 x USB 2.0 1 x PS/2 keyboard 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x PS/2 mouse |
| Internal Interfaces (Expansion / Connectivity) | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C Gen 1 - header 1 x audio - header 2 x serial - header 1 x speaker - header |
| Power Connectors (Expansion / Connectivity) | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| Sleep / Wake Up (Features) | Wake on LAN (WOL), wake on PME |
| Hardware Features (Features) | LANGuard, ASUS OptiMem, jack retasking, ASUS Self Recovering BIOS, Q-LED Core, audio jack detect technology, ASUS EZ DIY, ASUS Event Log, ASUS Commercial BIOS kit, overcurrent protection, ASUS Control Center Express (ACC Express), TPM IC Onboard, Preboot eXecution Environment (PXE) |
| Included Accessories (Miscellaneous) | IO shield, 2 x M.2 screws, ACC Express Activation Key Card |
| Cables Included (Miscellaneous) | 2 x Serial ATA cable |
| Compliant Standards (Miscellaneous) | DisplayPort 1.4, FCC Part 15 Class B, VCCI Class B ITE, JATE, EU RoHS, EU REACH |
| Width (Miscellaneous) | 24.4 cm |
| Depth (Miscellaneous) | 24.4 cm |
| Package Details (Miscellaneous) | Box |
| Pricing Type (Miscellaneous) | ASUS Corporate Stable Model (CSM) |
