Характеристики

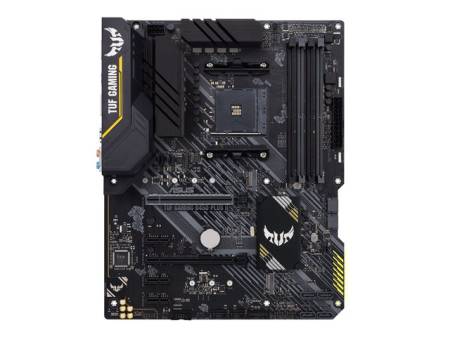

| Product Type (General) | Motherboard - ATX |
| Chipset Type (General) | AMD B450 |
| Processor Socket (General) | Socket AM4 |
| Max Processors Qty (General) | 1 |
| Compatible Processors (General) | Ryzen, Athlon (supports 1st,2nd and 3rd Generation Ryzen / Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics) |
| Max Size (Supported RAM) | 128 GB |
| Technology (Supported RAM) | DDR4 |
| Bus Clock (Supported RAM) | 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz, 3200 MHz, 3000 MHz, 3466 MHz (O.C.), 3533 MHz (O.C.), 4400 MHz (O.C.) |
| Supported RAM Integrity Check (Supported RAM) | Non-ECC, ECC |
| Registered or Buffered (Supported RAM) | Unbuffered |
| Features (Supported RAM) | Dual channel memory architecture |
| Type (Audio) | HD Audio (8-channel) |
| Audio Codec (Audio) | Realtek ALCS1200A |
| Compliant Standards (Audio) | High Definition Audio, DTS Custom |
| Network Controller (LAN) | Realtek RTL8200A |
| Network Interfaces (LAN) | Gigabit Ethernet |
| Expansion Slots (Expansion / Connectivity) | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 3.0 x16 (x16 mode (with 1st, 2nd and 3rd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Vega Graphics); x4 mode (with Athlon with Radeon Vega Graphics)) 3 x PCIe 2.0 x1 1 x PCIe 2.0 x16 (x4 mode) |
| Storage Interfaces (Expansion / Connectivity) | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 SATA-600 / PCIe 3.0 -connectors: 1 x M.2 PCIe 2.0 -connectors: 1 x M.2 |
| Interfaces (Expansion / Connectivity) | 1 x LAN (Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 2 x USB 2.0 1 x HDMI 1 x USB 3.2 Gen 2 1 x audio line-out (center/subwoofer) - mini-jack 1 x USB-C Gen2 1 x audio line-out (rear) - mini-jack 4 x USB 3.2 Gen 1 1 x DisplayPort |
| Internal Interfaces (Expansion / Connectivity) | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x serial - header 1 x audio - header |
| Power Connectors (Expansion / Connectivity) | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type (Features) | AMI |
| BIOS Features (Features) | UEFI BIOS, BIOS FlashBack, ASUS Quiet Thermal Solution |
| Sleep / Wake Up (Features) | Wake on LAN (WOL), wake on PME |
| Hardware Features (Features) | Preboot eXecution Environment (PXE), AMD CrossFireX technology support, TUF LANGuard, ASUS TUF Protection, ASUS DIGI+ VRM, ASUS Stainless Steel Back I/O, ASUS Overvoltage Protection, ASUS SafeSlot, Armoury Crate, ASUS Fan Xpert 4 Core, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit) |
| Included Accessories (Miscellaneous) | 1 x M.2 screw, I/O back cover, TUF stickers |
| Cables Included (Miscellaneous) | 2 x Serial ATA cable |
| Software Included (Miscellaneous) | Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, PC Cleaner, ASUS EZ Update, ASUS EZ Flash 3, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial), ASUS TUF GAMING CPU-Z |
| Width (Miscellaneous) | 30.5 cm |
| Depth (Miscellaneous) | 24.4 cm |
