Характеристики

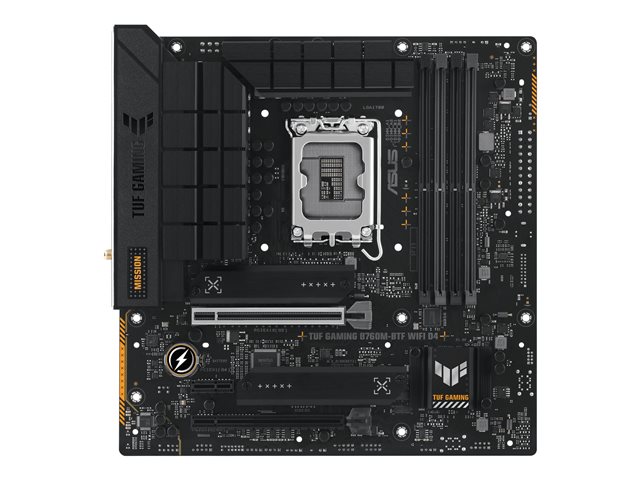

| Product Type (General) | Motherboard - micro ATX |
| Chipset Type (General) | Intel B760 |
| Processor Socket (General) | LGA1700 Socket |
| Max Processors Qty (General) | 1 |
| Compatible Processors (General) | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max Size (Supported RAM) | 128 GB |
| Technology (Supported RAM) | DDR4 |
| Bus Clock (Supported RAM) | 5333 MHz (O.C.), 5066 MHz (O.C.), 5000 MHz (O.C.), 4800 MHz (O.C.), 4600 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4000 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3466 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3200 MHz, 3000 MHz, 2933 MHz, 2800 MHz, 2666 MHz, 2400 MHz, 2133 MHz |
| Supported RAM Integrity Check (Supported RAM) | Non-ECC |
| Registered or Buffered (Supported RAM) | Unbuffered |
| Features (Supported RAM) | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Type (Audio) | High Definition Audio (7.1-channel) |
| Compliant Standards (Audio) | High Definition Audio |
| Network Interfaces (LAN) | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion Slots (Expansion / Connectivity) | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 4.0 x1 1 x M.2 socket (2280 M.2 Key M slot) 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces (Expansion / Connectivity) | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 3 x M.2 |
| Interfaces (Expansion / Connectivity) | 1 x HDMI 1 x DisplayPort 1 x aerial 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x USB-C 3.2 Gen2x2 1 x USB-C 3.2 Gen 2 1 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen 1 2 x USB 3.2 Gen 1 4 x USB 2.0 |
| Internal Interfaces (Expansion / Connectivity) | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2 - header 1 x Thunderbolt - header |
| Power Connectors (Expansion / Connectivity) | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| BIOS Type (Features) | AMI |
| BIOS Features (Features) | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up (Features) | Wake on LAN (WOL), wake on PME |
| Hardware Features (Features) | Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem II, CrashFree BIOS 3, ASUS EZ DIY, Preboot eXecution Environment (PXE), ASUS DIGI+ VRM, ASUS Fan Xpert 2+, TUF LANGuard, ESD Guards, ASUS Overvoltage Protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, Clear CMOS Button, CPU Socket lever protector, ASUS ProCool, pre-mounted I/O shield, ASUS SafeDIMM, ASUS Aura Sync, audio jack detect technology, jack retasking |
| Included Accessories (Miscellaneous) | ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, M.2 SSD screw package, TUF GAMING sticker |
| Cables Included (Miscellaneous) | 2 x Serial ATA cable |
| Software Included (Miscellaneous) | MyAsus, Armoury Crate, PC Cleaner, WinRAR, Norton 360 Deluxe (60 days trial), DTS Audio Processing, ASUS AI Suite III, ASUS AURA Creator, ASUS TUF GAMING CPU-Z |
| Width (Miscellaneous) | 24.4 cm |
| Depth (Miscellaneous) | 24.4 cm |
