Характеристики

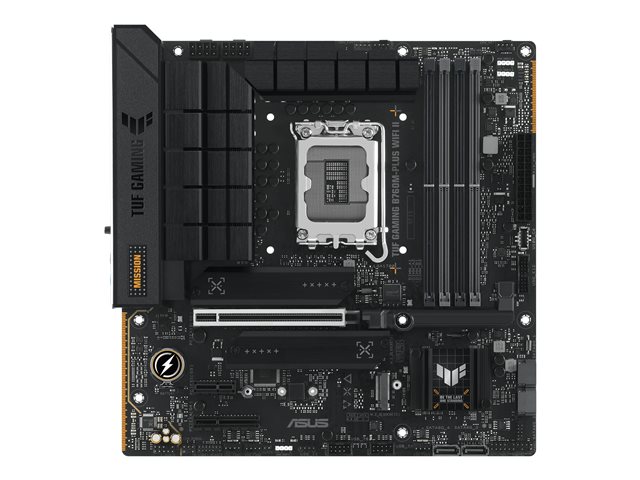

| Product Type (General) | Motherboard - micro ATX |
| Chipset Type (General) | Intel B760 |
| Processor Socket (General) | LGA1700 Socket |
| Max Processors Qty (General) | 1 |
| Compatible Processors (General) | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Max Size (Supported RAM) | 192 GB |
| Technology (Supported RAM) | DDR5 |
| Bus Clock (Supported RAM) | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7800 MHz (O.C.) |
| Supported RAM Integrity Check (Supported RAM) | Non-ECC, on-die ECC |
| Registered or Buffered (Supported RAM) | Unbuffered |
| Features (Supported RAM) | Intel Extreme Memory Profiles (XMP), dual channel memory architecture |
| Type (Audio) | High Definition Audio (7.1-channel) |
| Compliant Standards (Audio) | High Definition Audio, Digital Theater Systems (DTS) |
| Network Interfaces (LAN) | 802.11a/b/g/n/ac/ax, 2.5 Gigabit Ethernet, Bluetooth 5.3 |
| Expansion Slots (Expansion / Connectivity) | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 1 x PCIe 3.0 x1 3 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces (Expansion / Connectivity) | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features (Expansion / Connectivity) | Intel Rapid Storage Technology |
| Interfaces (Expansion / Connectivity) | 1 x DisplayPort 1 x HDMI 2 x aerial 1 x USB-C 3.2 Gen 2 1 x USB 3.2 Gen 2 2 x USB 3.2 Gen 1 4 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x SPDIF out 1 x audio line-in - mini-jack 1 x microphone - mini-jack 1 x audio line-out/headphones - mini-jack 1 x audio line-out (rear) - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack |
| Internal Interfaces (Expansion / Connectivity) | 1 x USB-C 3.2 Gen 2 - header 2 x USB 3.2 Gen 1 - header 5 x USB 2.0 - header 1 x audio - header 1 x Thunderbolt - header |
| Power Connectors (Expansion / Connectivity) | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| BIOS Type (Features) | AMI |
| BIOS Features (Features) | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up (Features) | Wake on LAN (WOL), wake on PME |
| Hardware Features (Features) | ASUS OptiMem II, Water Pump Header, ASUS DIGI+ VRM, Dr.MOS MOSFET, TUF ESD Guards, TUF LANGuard, overvoltage protection, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-LED, M.2 Q-Latch, Q-Slot, M.2 heatsink, VRM heatsink design, ASUS EZ DIY, ASUS ProCool, ASUS SafeDIMM, pre-mounted I/O shield, ASUS Aura Sync, ASUS TUF Protection, CrashFree BIOS 3, Preboot eXecution Environment (PXE), Windows 11 compatible, 12+1+1 Phase Power Design, ProCool Power Connector, 6 Layer PCB, Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, TUF Chokes military-grade, TUF 5K black metallic capacitors, 12+1 DrMOS power stages, CPU Socket lever protector, ESD Guards, AURA RGB Lighting Control |
| Included Accessories (Miscellaneous) | ASUS Wi-Fi Q-antenna, 1 x M.2 rubber package, TUF GAMING sticker, 2 x M.2 SSD screw package |
| Cables Included (Miscellaneous) | 2 x Serial ATA cable |
| Software Included (Miscellaneous) | Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS AI Suite III, ASUS TUF GAMING CPU-Z, DTS Audio Processing, MyAsus, Norton 360 for Gamers, WinRAR, PC Cleaner |
| Width (Miscellaneous) | 24.4 cm |
| Depth (Miscellaneous) | 24.4 cm |
