Cisco Catalyst 9200L 48-port 8xmGig

Запитай

Сравни

Задължителен е минимум 3-годишен лиценз DNA Essentials!

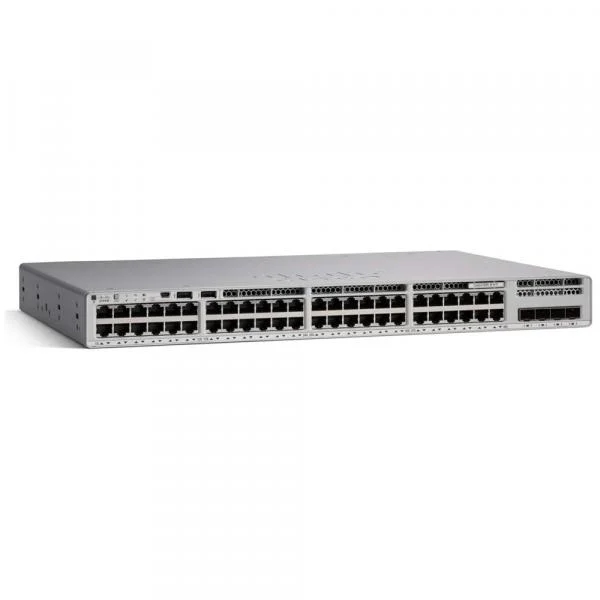

Cisco Catalyst 9200L 48-port 8xmGig, 40x1G, 2x25G PoE+, Network Essentials

Наличност: с поръчка

19 337.41лв. с ДДС

Продуктов код: C9200L-48PXG-2Y-E

Продуктът не е наличен. Направете запитване

Характеристики

Суич, тип	Fixed Port
Общ брой портове	50
Основни портове, тип	48 ports full POE+ (8 mGig ports up to 10G, 40 ports up to 1G)
Power Over Ethernet (PoE)	IEEE 802.3at PoE+ (up to 30W per port); Available PoE power with single primary power supply (PWR-C5-1KWAC): 740W
Uplink портове	2x 1/10/25G fixed uplinks
Свободни (10GB) слотове	-
Управление	WebUI is an embedded GUI-based device-management tool that provides the ability to provision the device, to simplify device deployment and manageability, and to enhance the user experience
Stackable	Stacking bandwidth: 160 Gbps
Fans	Fixed redundant
Захранване	PWR-C5-1KWAC
Routing	Advanced
Памет (Flash, RAM)	Flash: 4 GB; DRAM: 4 GB; Packet buffer: 12MB
Капацитет за маршрутизиране/превключване, Gbps	340 Gbps; Switch capacity with Stacking: 420 Gbps
Пропускателна способност, Mpps	252.97 Mpps; Forwarding rate with Stacking: 313 Mpps
MAC адреси	32 000
VLAN (брой, стандарти)	4; VLAN IDs: 4096; CISCO-PRIVATE-VLAN-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP- MIB, IEEE 802.1Q VLAN
QoS	Superior QoS includes granular wireless bandwidth management and fair sharing, 802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification, SRR scheduling, Committed Information Rate (CIR), eight egress queues per port
L2 мрежови стандарти	IEEE 802.1Q, IEEE 802.1D (STP); RSTP, IEEE 802.1w; MSTP, IEEE 802.1s; PVLAN; IEEE 802.3ad (LACP); LLDP; VTP; BPDU Guard
L3 мрежови стандарти	IP Routing (Static, RIP, OSPF, EIGRP), VLAN Routing (SVI, Routing Between VLANs); Multicast Routing (PIM, IGMP); BGP; IPv6; HSRP; VRRP; GLBP; ACLs; PBR
IPv6 functionality	IPv6 routing entries: 2000; Ipv6 routing (using OSPFv3 and EIGRPv6); IPv6 addressing
Сигурност	AES-128 MACsec encryption; Secure Segmentation with Software-Defined Access; Cloud Security - Umbrella Integration
Размери (Ш, Д, В), mm	445 x 350 x 44 mm
Опция за монтаж	Rackmount
Други	Network Essentials licensing
