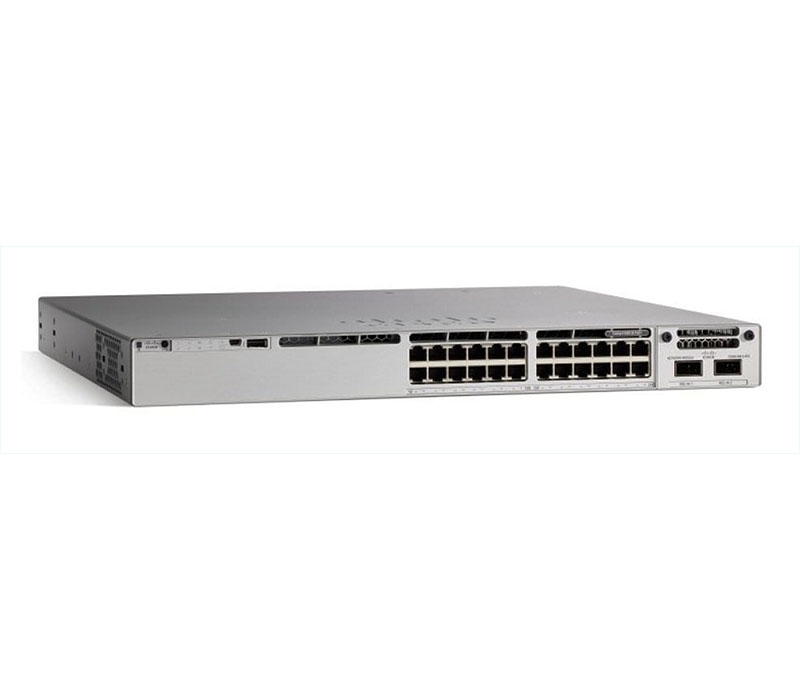

Cisco Catalyst 9300 24-port 1G


Задължителен е минимум 3-годишен лиценз DNA Essentials!

Cisco Catalyst 9300 24-port 1G copper with fixed 4x10G/1G SFP+ uplinks, data only Network Essentials

Наличност: на път
6 994.90лв. с ДДС

Продуктов код: C9300L-24T-4X-E


Суич, тип Fixed Port
Общ брой портове 28
Основни портове, тип 24x10/100/1000Base-T
Power Over Ethernet (PoE) No
Uplink портове fixed 4x10G/1G SFP+ uplinks
Свободни (10GB) слотове No
Управление SNMPv1, SNMPv2c, and SNMPv3; RMON I and II standards; Internet Group Management Protocol (IGMP); CLI; TCP; UDP
Stackable Stacking support: StackWise-320; 320 Gbps; Optional Stacking hardware: C9300L-STACK-KIT; Number of members: 8; Supported stack members: Other C9300L SKUs with same license level
Fans three field-replaceable fans and support (N+1) redundancy
Захранване Dual redundant power supplies, Default primary AC power supply: PWR-C1-350WAC-P
Routing Layer 3 Advanced
Памет (Flash, RAM) Flash memory: 16 GB; 8 GB DRAM
Капацитет за маршрутизиране/превключване, Gbps 56 Gbps; Switching capacity with stacking: 376 Gbps
Пропускателна способност, Mpps 41.66 Mpps; Forwarding rate with stacking: 279.76 Mpps
MAC адреси 32000 MAC address
VLAN (брой, стандарти) VLAN IDs: 4094; IEEE 802.1Q VLAN
QoS Granular wireless bandwidth management and fair sharing,802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification,Shaped Round Robin (SRR) scheduling,Committed Information Rate (CIR), and eight egress queues per port
L2 мрежови стандарти IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3x
L3 мрежови стандарти IP unicast routing protocols: Static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng, Open Shortest Path First [OSPF]
IPv6 functionality IPv6 routing (using OSPFv3 and EIGRPv6) is supported in hardware for maximum performance; IPv6 addressing is supported on interfaces with appropriate show commands for monitoring and troubleshooting
Сигурност Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
Размери (Ш, Д, В), mm 44.5 x 44.9 x 4.4
Опция за монтаж Rackmount
Други Задължителен е минимум 3-годишен лиценз DNA Essentials.
