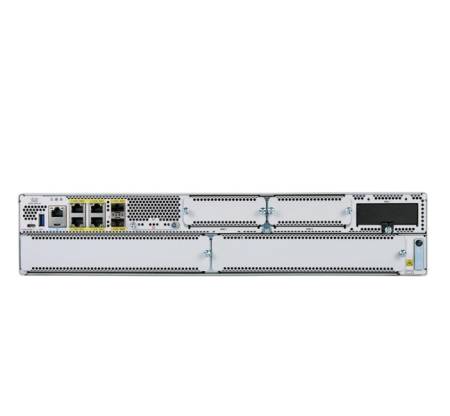

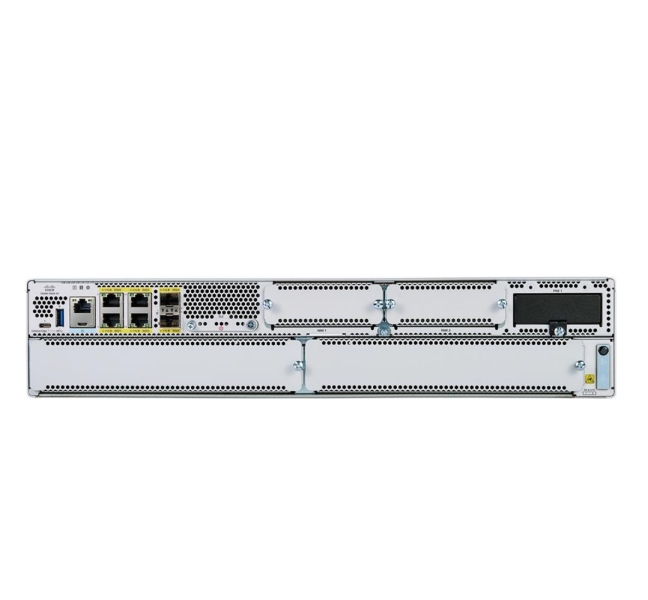

Cisco Catalyst C8300-2N2S-4T2X Router
Продуктов код: C8300-2N2S-4T2X
Серия | Catalyst C8300 |
Интегрирани WAN портове | 2x 10-Gigabit Ethernet and 4x 1-Gigabit Ethernet ports (2x Ethernet ports that can support Small Form-Factor Pluggable (SFP or SFP+) + 4x RJ-45 connections, enabling fiber or copper connectivity) |
Модулни LAN портове | Supported modules: NIM-ES2-4/8 - Cisco 4/8-port Gigabit Ethernet switch NIM; NIM-ES2-8-P - Cisco 8-port Gigabit Ethernet switch NIM with PoE support; C-SM-16P4M2X/40P8M2X - Cisco 22/50-port Catalyst L2 switch module with UADP ASIC |
SFP базирани портове | 2x SFP/SFP+ |
Брой EHWIC слотове | 2x NIM |
Модул интегрирани услуги | 1x PIM |
Мрежови слот NM/SM | 2x SM |
IPSec VPN тунели | 4000 - Number of IPsec SVTI Tunnels |
Сигурност | Built-in end-to-end segmentation (VPNs), ZBFW, PKI, Cisco DNA Layer Security, Snort IPS/IDS, URL Filtering, Advanced Protection(AMP), ThreatGrid(TG), ALG for ZBFW |
Глас | Supports a variety of voice modules |
Памет DRAM вградена/ max | 8G default DRAM and can be upgraded to 16G and 32G for higher scale and performance |
Памет Flash вградена/ mах | Integrated on-board 8G flash and it is not upgradeable. M.2 storage provides upgrade options for additional storage |
USB портове | 0 |
Размери (Ш, Д, В), mm | 254.3 x 470.4 x 88.9 mm |
Допълнителна информация | All the Catalyst 8300 models ship with default 16G M.2 USB for SD-WAN logging and additional storage on the platform. It can be upgraded to 32G M.2 USB and 600G M.2 Non-Volatile Memory Express (NVMe). |
Други | Up to 5 Gbps of IPSec Internet Mix (IMIX) traffic. All Catalyst 8300 platforms ship with dual power supplies for redundancy |
