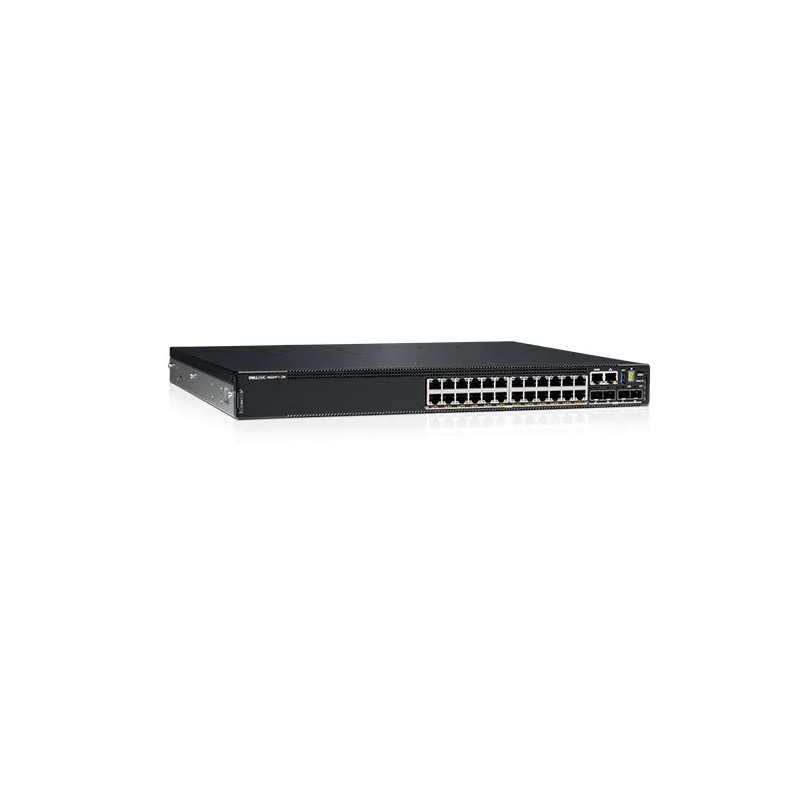

Dell EMC PowerSwitch N3224PX-ON

Запитай

Dell EMC PowerSwitch N3224PX-ON, 24x10M/100M/1G/ 2.5G/5G/10G BASE-T RJ45 with 802.3bt Type-4 (90W) PoE, 4x 25G SFP28 ports, 2x 100G QSFP28, 1x1600W AC PSU, 1 EPS (optional), IO/PS


Наличност: с поръчка
7 598.74лв. с ДДС

Продуктов код: DNN3224PX

Характеристики

Суич, тип Fixed Port
Общ брой портове 30
Основни портове, тип 24x 10M/100M/1G/ 2.5G/5G/10G BASE-T RJ45 multigigabit ports with 802.3bt Type-4 (90W) PoE
Power Over Ethernet (PoE) 802.3bt Type-4 (90W) PoE
Uplink портове 4x 25G SFP28
Свободни (10GB) слотове -
Управление CLI, Web, SNMP; 1x 10/100/1000BaseT Ethernet management port
Stackable 2x 100G QSFP28
Fans 3 pluggable fan modules; Normal airflow only
Захранване 1x 1600W AC PSU included; 2 pluggable AC PSUs — 1 default and 1 optional or 2 optional DC PSUs; External power supply connectors to connect the MPS-1S or MPS-3S shelf
Routing Line-rate Layer 3 routing (Static routes: 1024 (IPv4)/1024 (IPv6); Dynamic routes: 8158 (IPv4)/4096 (IPv6); RIP routing interfaces: 512, VLAN routing interfaces: 128)
Памет (Flash, RAM) 4 GB DDR4 SO-DIMM, 8 GB mSATA 2.0/M.2 SSD
Капацитет за маршрутизиране/превключване, Gbps 1080 Gbps
Пропускателна способност, Mpps 1500 Mpps
MAC адреси 32K
VLAN (брой, стандарти) Private VLAN extensions and Private VLAN Edge support; VLAN routing interfaces: 128; VLANs supported: 4094; Protocol-based VLANs: Supported; Max VLAN interfaces with ACLs applied: 24
QoS DiffServ Field, DiffServ Architecture, Assured Fwd PHB, Port Based QoS Services (TCP/UDP) Mode, Red/WRED, Flow Based QoS Services, Audio Video Bridging Mode (IPv4/IPv6), UDLD, srTCM, trTCM
L2 мрежови стандарти 802.3ab 802.1ax (Layer 2) 802.1d, 802.1w, 802.1s, 802.1x (Mgmt/Security), 802.3x (Layer 2) 802.3 802.3ba (40 GbE and 100 GbE) 802.3bt 802.3at 802.3az 802.1v 1613 802.1p, 1q 802.1s 802.3u, 802.3bz, 802.3at, 802.3bt
L3 мрежови стандарти RIP, OSPF, VRRP, MIB
IPv6 functionality Layer 3 Advanced IPv4 and IPv6 functionality including BGP, VRF, BFD, PIM-SM/DM/SSM, IGMP/MLD, RIPv1/v2, OSPFv2/v3
Сигурност RADIUS, TACACS+, 802.1x
Размери (Ш, Д, В), mm 434 x 400 x 43.5 mm
Опция за монтаж Rackmount
Други 1x Micro USB Type-B console port, 1x USB Type-A port, 1x RJ45 serial console port; Two-core Denverton-NS CPU
