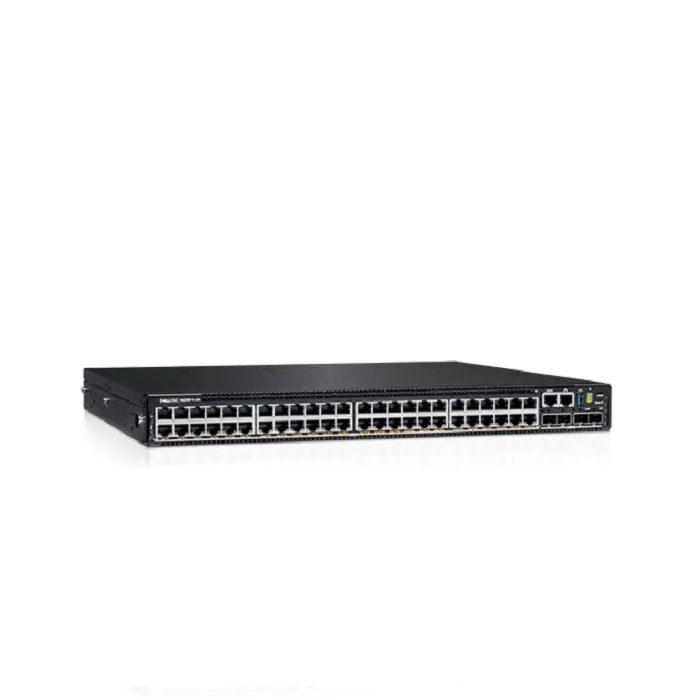

Dell EMC PowerSwitch N3248TE-ON

Запитай

Dell EMC PowerSwitch N3248TE-ON, 48x RJ45 10/100/1000Mb auto-sensing ports, 4x 10G SFP+ ports, 2x 100G QSFP28 ports, 1x 550W AC PSU, IO/PS, OS10


Наличност: с поръчка
6 869.17лв. с ДДС

Продуктов код: DNN3248TE_OS10

Характеристики

Суич, тип Fixed Port
Общ брой портове 54
Основни портове, тип 48x 10/100/1000Base-T
Power Over Ethernet (PoE) -
Uplink портове 4x 10G SFP+ ports
Свободни (10GB) слотове -
Управление CLI, Web, SNMP; 1x 10/100/1000BaseT Ethernet management port
Stackable 2x 100G QSFP28
Fans Redundant variable speed fans
Захранване 1x 550W AC PSU
Routing Line-rate Layer 3 routing (Static routes: 1024 (IPv4)/1024 (IPv6); Dynamic routes: 8158 (IPv4)/4096 (IPv6); RIP routing interfaces: 512, VLAN routing interfaces: 128)
Памет (Flash, RAM) 4 GB DDR4 SO-DIMM, 8 GB mSATA 2.0/M.2 SSD
Капацитет за маршрутизиране/превключване, Gbps 576 Gbps
Пропускателна способност, Mpps 800 Mpps
MAC адреси 32K
VLAN (брой, стандарти) Private VLAN extensions and Private VLAN Edge support; VLAN routing interfaces: 128; VLANs supported: 4094; Protocol-based VLANs: Supported; Max VLAN interfaces with ACLs applied: 24
QoS DiffServ Field, DiffServ Architecture, Assured Fwd PHB, Port Based QoS Services (TCP/UDP) Mode, Red/WRED, Flow Based QoS Services, Audio Video Bridging Mode (IPv4/IPv6), UDLD, srTCM, trTCM
L2 мрежови стандарти 802.3ab 802.1ax (Layer 2) 802.1d, 802.1w, 802.1s, 802.1x (Mgmt/Security), 802.3x (Layer 2) 802.3 802.3ba (40 GbE and 100 GbE) 802.3bt 802.3at 802.3az 802.1v 1613 802.1p, 1q 802.1s 802.3u, 802.3bz, 802.3at, 802.3bt
L3 мрежови стандарти RIP, OSPF, VRRP, MIB
IPv6 functionality Layer 3 Advanced IPv4 and IPv6 functionality including BGP, VRF, BFD, PIM-SM/DM/SSM, IGMP/MLD, RIPv1/v2, OSPFv2/v3
Сигурност RADIUS, TACACS+, 802.1x
Размери (Ш, Д, В), mm 434 x 400 x 43.5 mm
Опция за монтаж Rackmount
Други 1x Micro USB Type-B console port, 1x USB Type-A port, 1x RJ45 serial console port; Two-core Denverton-NS CPU
