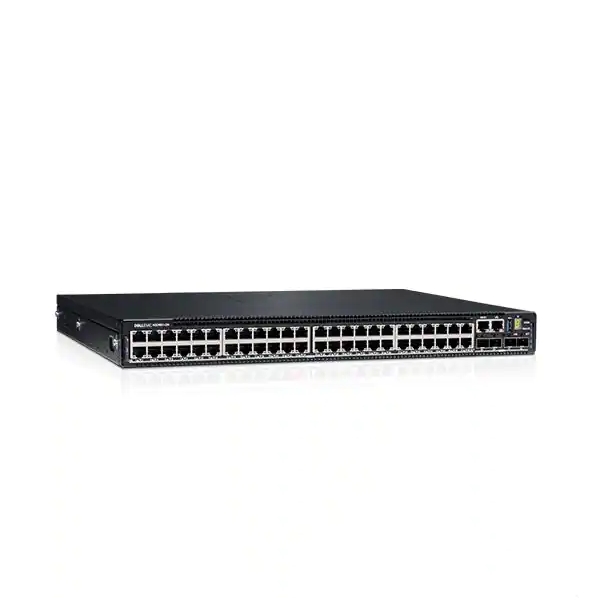

Dell EMC PowerSwitch N3248X-ON

Запитай

Dell EMC PowerSwitch N3248X-ON, 48x RJ45 10M/100M/1G/2.5G/5G/10G auto-sensing ports, 4x 25G SFP28 ports, 2X 100G QSFP28 ports, 1x 550W AC PSU included, OS6


Наличност: с поръчка
9 975.78лв. с ДДС

Продуктов код: DNN3248X

Характеристики

Суич, тип Fixed Port
Общ брой портове 54
Основни портове, тип 10M/100M/1G/2.5G/5G/10G auto-sensing ports
Power Over Ethernet (PoE) -
Uplink портове 4x 25G SFP28 ports
Свободни (10GB) слотове -
Управление CLI, Web, SNMP; 1x 10/100/1000BaseT Ethernet management port
Stackable 2x 100G QSFP28
Fans Redundant variable speed fans
Захранване 1x 550W AC PSU
Routing Line-rate Layer 3 routing (Static routes: 1024 (IPv4)/1024 (IPv6); Dynamic routes: 8158 (IPv4)/4096 (IPv6); RIP routing interfaces: 512, VLAN routing interfaces: 128)
Памет (Flash, RAM) 4 GB DDR4 SO-DIMM, 8 GB mSATA 2.0/M.2 SSD, buffer memory: 4MB
Капацитет за маршрутизиране/превключване, Gbps 1560 Gbps
Пропускателна способност, Mpps 2167 Mpps
MAC адреси 32K
VLAN (брой, стандарти) Private VLAN extensions and Private VLAN Edge support; VLAN routing interfaces: 128; VLANs supported: 4094; Protocol-based VLANs: Supported; Max VLAN interfaces with ACLs applied: 24
QoS DiffServ Field, DiffServ Architecture, Assured Fwd PHB, Port Based QoS Services (TCP/UDP) Mode, Red/WRED, Flow Based QoS Services, Audio Video Bridging Mode (IPv4/IPv6), UDLD, srTCM, trTCM
L2 мрежови стандарти 802.3ab 802.1ax (Layer 2) 802.1d, 802.1w, 802.1s, 802.1x (Mgmt/Security), 802.3x (Layer 2) 802.3 802.3ba (40 GbE and 100 GbE) 802.3bt 802.3at 802.3az 802.1v 1613 802.1p, 1q 802.1s 802.3u, 802.3bz, 802.3at, 802.3bt
L3 мрежови стандарти RIP, OSPF, VRRP, MIB
IPv6 functionality Layer 3 Advanced IPv4 and IPv6 functionality including BGP, VRF, BFD, PIM-SM/DM/SSM, IGMP/MLD, RIPv1/v2, OSPFv2/v3
Сигурност RADIUS, TACACS+, 802.1x
Размери (Ш, Д, В), mm 434 x 400 x 43.5 mm
Опция за монтаж Rackmount
Други 1x Micro USB Type-B console port, 1x USB Type-A port, 1x RJ45 serial console port; Two-core Denverton-NS CPU
