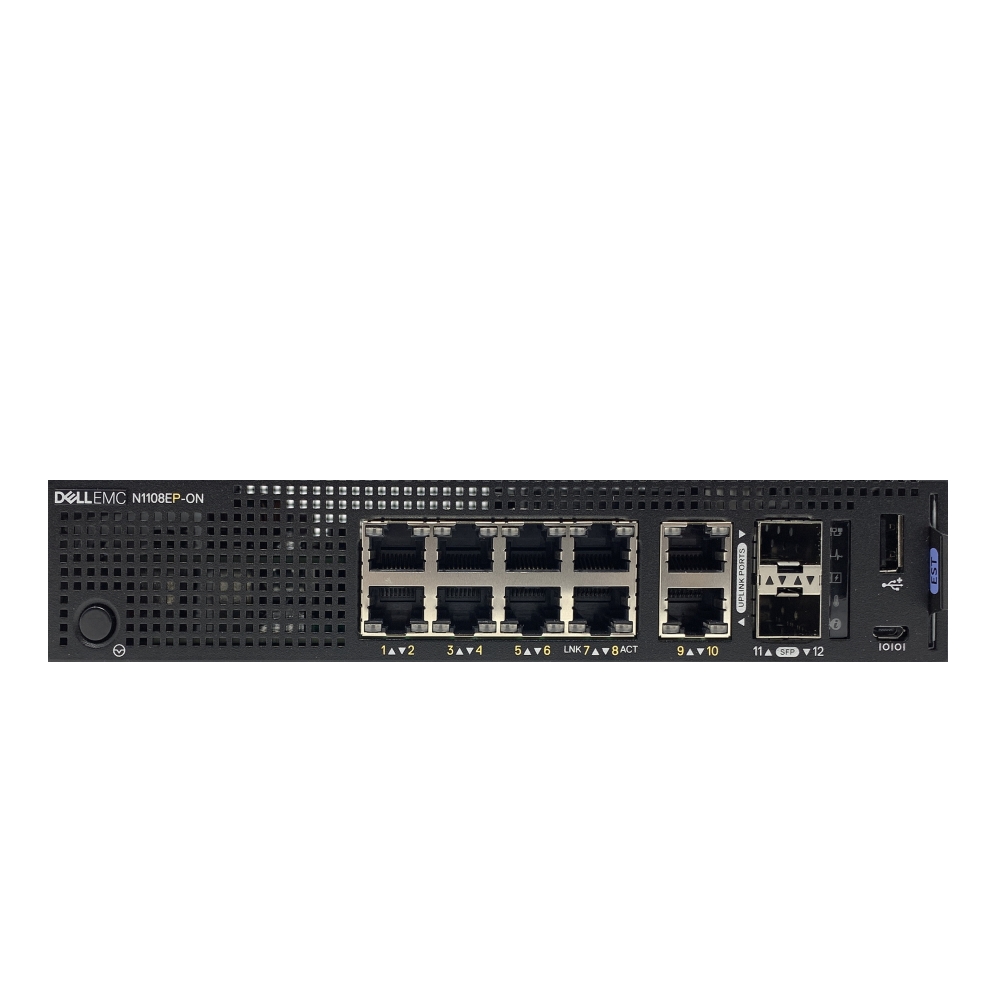

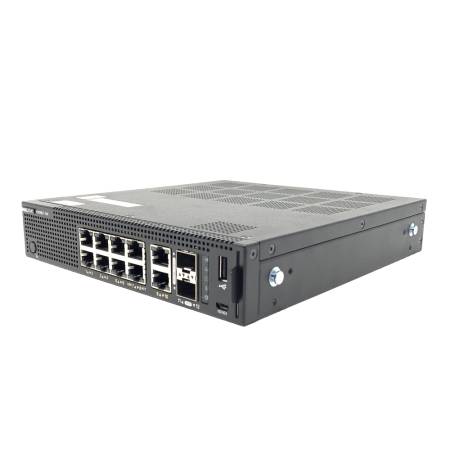

Dell EMC Switch N1108EP-ON, Gigabit, L2, 8x 10/100/1000Mbps half/full duplex ports, 2x GbE RJ45 and 2x GbE SFP interfaces, 8xPoE/PoE+, DNN1108EP, 137W PoE power budget RJ45, FastPoE, Perpetual PoE,1 RU half-width, fanless operation, LL Hardware Warranty
Продуктов код: DNN1108EP
Суич, тип | Fixed Port |
Основни портове, тип | 8x 10/100/1000 Mbps half/full duplex RJ45 ports |
Power Over Ethernet (PoE) | 8x PoE/PoE+ RJ45 ports, 137W PoE power budget RJ45 |
Uplink портове | 2x10/100/1000Base-T; 802.3af PoE/802.3at PoE+ |
Свободни (10GB) слотове | - |
Управление | Management via an intuitive and familiar CLI, embedded web server (GUI), SNMP-based management console application (including Dell OpenManage Network Manager), Telnet or serial connection |
Stackable | 2x 1GbE SFP |
Fans | Fanless |
Захранване | External (Air flow: I/O to power supply; Pass through POE); External power adapter: 137W of POE power |
Памет (Flash, RAM) | Flash memory: 1GB; Packet buffer memory: 1.5MB |
Капацитет за маршрутизиране/превключване, Gbps | 24Gbps |
Пропускателна способност, Mpps | 18Mpps |
MAC адреси | 16K |
VLAN (брой, стандарти) | VLANs supported: 512; Protocol-based VLANs: Supported; Max VLAN interfaces with ACLs applied: 24; Standards: Dell Voice VLAN, 802.1Q VLAN Tagging, Double VLAN Tagging, GVRP, 802.1v Protocol-based VLANs, Dell RSTP-Per VLAN, 802.1X (Auto VLAN) |
QoS | 2474 DiffServ Field, 2475 DiffServ Architecture, 2597 Assured Fwd PHB, Dell L4 Trusted Mode (TCP/UDP), Dell UDLD, Dell Flow Based QoS Services Mode (IPv4/IPv6), Dell Port Based QoS Services Mode |
L2 мрежови стандарти | 802.3ab, 802.3ac, 802.3ad, 802.3ae, 802.1p, 802.3u, 802.3x, 802.3z, 802.1D, 802.1p,802.1Q, 802.1S, 802.1v, 802.1W |
IPv6 functionality | ARP entries: 2048 (IPv4)/512 (IPv6), Max ACL rules per interface and direction (IPv6): 1021 ing/253 egr; General IPv6 protocols are supported |
Сигурност | SMI, SNMP, MIB, TACACS+, HTTP/1.1, TLS v1, RADIUS, HTTP over TLS, SSHv2, SSL, 802.1x, IP Address Filtering, RSPAN |
Размери (Ш, Д, В), mm | 209.6 x 224.8 x 41.4 mm |
Опция за монтаж | Rackmount, 1 RU |
