Характеристики

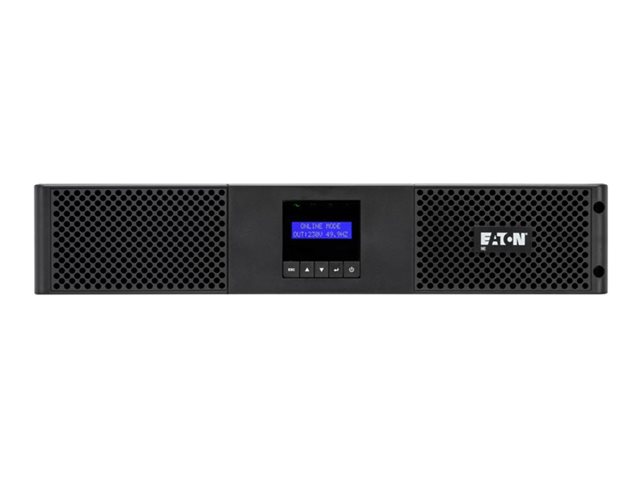

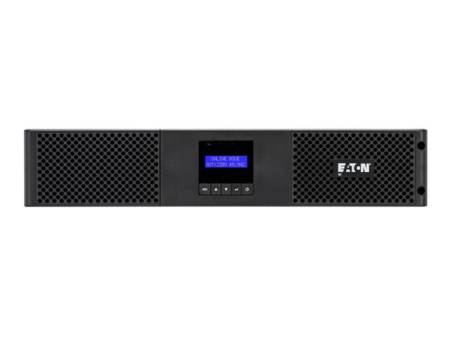

| Device Type (General) | UPS - rack-mountable / external |
| Height (Rack Units) (General) | 2U |
| Rack Size (General) | 19" |
| Colour (General) | Black |
| UPS Technology (Power Device) | On-line |
| Input Voltage (Power Device) | AC 200/220/230/240 V |
| Input Voltage Range (Power Device) | AC 140 - 276 V |
| Frequency Provided (Power Device) | 50/60 Hz |
| Input Wiring (Power Device) | 1-phase |
| Frequency Required (Power Device) | 50/60 Hz |
| Input Connectors (Power Device) | 1 x power IEC 60320 C20 |
| Power Output Connectors Details (Power Device) | 6 x power IEC 60320 C13 1 x power IEC 60320 C19 |
| Output Voltage (Power Device) | AC 220/230/240 V 50/60 Hz |
| Power Capacity (Power Device) | 2700 Watt / 3000 VA |
| Output Waveform (Power Device) | Sinewave |
| Efficiency (Power Device) | 91%, 97% Eco mode |
| Power Factor (PF) (Power Device) | 0.99 |
| Quantity (Battery) | 6 |
| Technology (Battery) | Lead Acid |
| Voltage Provided (Battery) | 12 V |
| Capacity (Battery) | 9 Ah |
| Run Time (Up To) (Battery) | 10.5 min at half load 3.5 min at full load |
| Features (Battery) | Hot-swappable, sealed |
| Remote Management Interface (Networking) | RS-232, USB |
| Interfaces (Expansion / Connectivity) | 1 x management (RS-232) - RS-232 1 x management (USB) - 4 pin USB Type B RPO - mini terminal block |
| Expansion Slots (Expansion / Connectivity) | 1 (total) / 1 (free) x Communication slot |
| Cables Included (Miscellaneous) | 2 x power cable (IEC) USB cable |
| Rack Mounting Kit (Miscellaneous) | Included |
| Features (Miscellaneous) | Auto shutdown circuit, double conversion, internal bypass, LCD display, deep discharge protection, automatic battery test, temperature-compensated battery charging |
| Compliant Standards (Miscellaneous) | TUV, IEC/EN 62040-1, IEC/EN 62040-2, LVD 2014/35/EU, EMC 2014/30/EU, RoHS 2011/65/EU Amendment 2015/863, EN IEC 62040-1:2019 + A11:2021, EN 62040-2:2006, EN/IEC 63000:2018 |
| Software Included (Software / System Requirements) | Eaton Intelligent Power Manager, Intelligent Power Editions |
| Service & Support (Manufacturer Warranty) | Limited warranty - 2 years |
| Min Operating Temperature (Environmental Parameters) | 0 °C |
| Max Operating Temperature (Environmental Parameters) | 40 °C |
| Humidity Range Operating (Environmental Parameters) | 0 - 96% (non-condensing) |
| Sound Emission (Environmental Parameters) | 45 dB |
| Width (Dimensions & Weight) | 43.8 cm |
| Depth (Dimensions & Weight) | 60.8 cm |
| Height (Dimensions & Weight) | 8.65 cm |
| Weight (Dimensions & Weight) | 31.3 kg |
