Характеристики
| Device Type (General) | UPS - external |
| Height (Rack Units) (General) | 2U |
| Rack Size (General) | 19" |
| UPS Technology (Power Device) | Line interactive |
| Input Voltage (Power Device) | AC 230 V |
| Input Voltage Range (Power Device) | AC 165 - 285 V |
| Input Voltage Range (Adjustable) (Power Device) | AC 150 - 285 V |
| Frequency Provided (Power Device) | 50/60 Hz |
| Frequency Required (Power Device) | 50/60 Hz |
| Input Connectors (Power Device) | 1 x power IEC 60320 C14 |

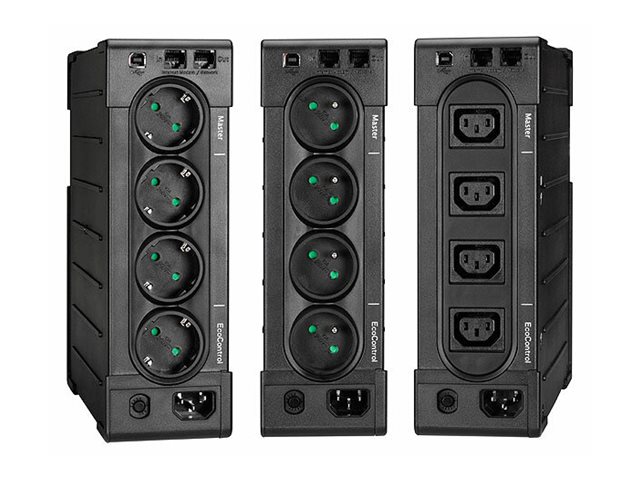

| Power Output Connectors Details (Power Device) | 4 x power CEE 7/7 (UPS and surge) 4 x power CEE 7/7 (surge) |
| Output Voltage (Power Device) | AC 220/230/240 V + 15% / - 20% - 50/60 Hz |
| Power Capacity (Power Device) | 750 Watt / 1200 VA |
| Dataline Surge Protection (Power Device) | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
| Surge Suppression (Power Device) | Yes |
| Circuit Protection (Power Device) | Circuit breaker |
| Quantity (Battery) | 2 |
| Technology (Battery) | Lead Acid |
| Capacity (Battery) | 7 Ah |
| Run Time (Up To) (Battery) | 9 min at half load 5 min at 70% load |
| Remote Management Interface (Networking) | USB |
| Interfaces (Expansion / Connectivity) | 1 x management (USB) - 4 pin USB Type B |
| Cables Included (Miscellaneous) | USB cable - external |
| Rack Mounting Kit (Miscellaneous) | Optional |
| Features (Miscellaneous) | Wall mountable, LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, cold-start function, EcoControl Master/Control outlets |
| Compliant Standards (Miscellaneous) | CB, IEC 62040-1-1, IEC 62040-2, IEC 61643-1, EN 62040-1-1, EN 62040-2 |
| Software Included (Software / System Requirements) | Eaton UPS Companion |
| Service & Support (Manufacturer Warranty) | Limited warranty - 3 years Limited warranty - batteries - 3 years |
| Min Operating Temperature (Environmental Parameters) | 0 °C |
| Max Operating Temperature (Environmental Parameters) | 35 °C |
| Humidity Range Operating (Environmental Parameters) | 0 - 85% |
| Width (Dimensions & Weight) | 8.2 cm |
| Depth (Dimensions & Weight) | 39 cm |
| Height (Dimensions & Weight) | 27.5 cm |
| Weight (Dimensions & Weight) | 9.9 kg |
