Характеристики

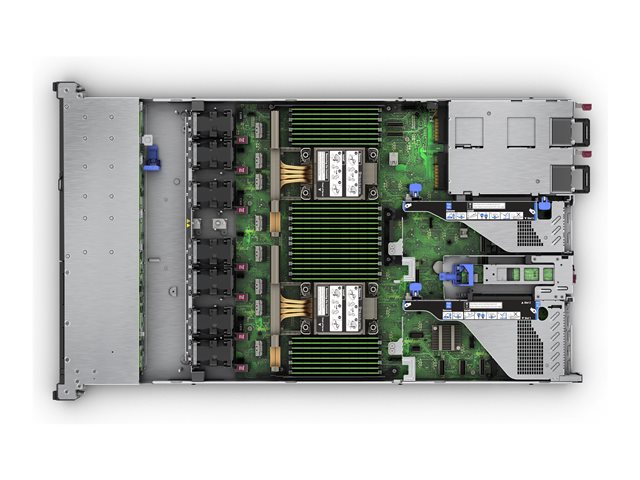

| Type (General) | Server |
| Product Form Factor (General) | Rack-mountable - 1U |
| Built-in Devices (General) | Led panel |
| Embedded Security (General) | Trusted Platform Module (TPM) Security Chip |
| Server Scalability (General) | 2-way |
| Hot-Swap Bays Qty (General) | 8 |
| Localisation (General) | Region: EMEA |
| CPU (Processor / Chipset) | Intel Xeon Silver 4509Y |
| Clock Speed (Processor / Chipset) | 2.6 GHz |
| Max Turbo Speed (Processor / Chipset) | 4.1 GHz |
| Number of Cores (Processor / Chipset) | 8-core |
| CPU Qty (Processor / Chipset) | 1 |
| Max CPU Qty (Processor / Chipset) | 2 |
| CPU Upgradability (Processor / Chipset) | Upgradable |
| Chipset Type (Processor / Chipset) | Intel C741 |
| Installed Size (Cache Memory) | 22.5 MB |
| Cache Per Processor (Cache Memory) | 22.5 MB |
| Installed Size (RAM) | 32 GB (installed) / 4 TB (max) |
| Technology (RAM) | DDR5 SDRAM - Advanced ECC |
| Effective Memory Speed (RAM) | 4400 MHz |
| Rated Memory Speed (RAM) | 5600 MHz |
| Form Factor (RAM) | DIMM 288-pin |
| Slots (RAM) | 32 (Total) / 31 (empty) |
| Features (RAM) | Registered, slots 17 - 32 are available in two-processor configuration only, HPE SmartMemory |
| Configuration Features (RAM) | 1 x 32 GB |
| Type (Hard Drive) | No HDD |
| Type (Storage Controller) | 1 x RAID - OCP |
| Controller Interface Type (Storage Controller) | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| Storage Controller Name (Storage Controller) | HPE MR408i-o Gen11 SPDM |
| Channel Qty (Storage Controller) | 8 |
| Buffer Size (Storage Controller) | 4 GB |
| Type (Optical Storage) | No optical drive |
| Monitor Type (Monitor) | None. |
| Video Memory (Graphics Controller) | 16 MB |
| Video Interfaces (Graphics Controller) | VGA |
| Interface (Bus) Type (Networking) | Open Compute Project mezzanine (OCP) 3.0 |
| Ethernet Ports (Networking) | 4 x Gigabit Ethernet |
| Ethernet Controller (Networking) | Broadcom BCM5719 |
| Data Link Protocol (Networking) | Gigabit Ethernet, Ethernet, Fast Ethernet |
| Remote Management Protocol (Networking) | SNMP 3, SMASH CLP, IPMI 2.0 |
| Remote Management Controller (Networking) | Integrated Lights-Out 6 |
| Features (Networking) | PXE support, Wake on LAN (WoL) |
| Bays (Expansion / Connectivity) | 1 (total) / 1 (free) x external Universal Media Bay 8 (total) / 8 (free) x hot-swap 2.5" |
| Slots (Expansion / Connectivity) | 2 (total) / 1 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode) |
| Interfaces (Expansion / Connectivity) | 1 x HPE iLO - Type A (1 in front) 1 x HPE iLO - RJ-45 4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 internal) 1 x VGA 4 x LAN (Gigabit Ethernet) 1 x USB 2.0 |
| Included Accessories (Miscellaneous) | 5 x standard fans, HPE Easy Install Rails |
| Compliant Standards (Miscellaneous) | ASHRAE Class A3, ASHRAE Class A4, TLS v1.2, AES, FIPS 140-2, IPv6 Ready, PCI DSS, WEEE 2002/95/EC, ACPI 6.4, ErP Lot 9 |
| Device Type (Power) | Power supply - hot-plug |
| Power Redundancy (Power) | Optional |
| Power Redundancy Scheme (Power) | 1+1 (with optional power supply) |
| Installed Qty (Power) | 1 |
| Max Supported Qty (Power) | 2 |
| Voltage Required (Power) | AC 100-240 V |
| Power Provided (Power) | 1000 Watt |
| 80 PLUS Certification (Power) | 80 PLUS Titanium |
| OS Provided (Operating System / Software) | No operating system |
| Software (Operating System / Software) | HPE Server UEFI |
| ENERGY STAR Certified (Sustainability Information) | Yes |
| ENERGY STAR Version (Sustainability Information) | 3.0 |
| Service & Support (Manufacturer Warranty) | Limited warranty - parts and labour - 3 years - on-site - response time: next business day |
| Width (Dimensions & Weight) | 43.46 cm |
| Depth (Dimensions & Weight) | 75.31 cm |
| Height (Dimensions & Weight) | 4.29 cm |
| Weight (Dimensions & Weight) | 14.56 kg |
| Min Operating Temperature (Environmental Parameters) | 10 °C |
| Max Operating Temperature (Environmental Parameters) | 35 °C |
| Humidity Range Operating (Environmental Parameters) | 8 - 90% RH (non-condensing) |
