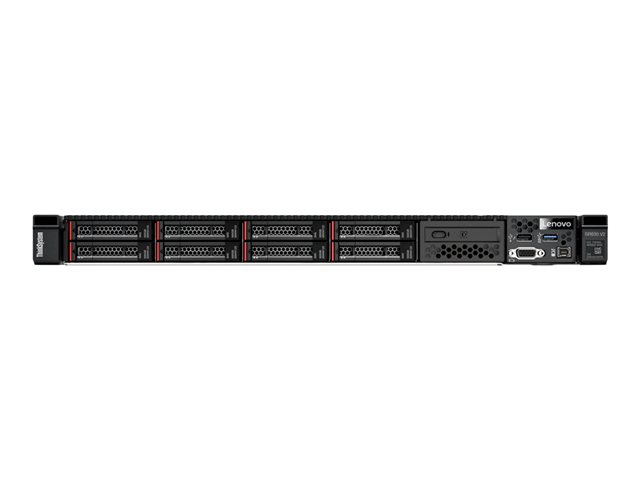

LENOVO ThinkSystem SR630 V2 Xeon

Запитай

LENOVO ThinkSystem SR630 V2 Xeon Silver 4309Y 8C 2.8GHz 12MB Cache 32GB 3200MHz RDIMM 8x2.5in 930-8i 2GB 1x1100W Titanium XCC Ent


Наличност: на склад
5 732.18лв. с ДДС

Продуктов код: 7Z71A088EA

Характеристики

Type (General) Server
Product Form Factor (General) Rack-mountable - 1U
Built-in Devices (General) 6 x fans
Embedded Security (General) Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability (General) 2-way
Hot-Swap Bays Qty (General) 8
Localisation (General) Region: EMEA
CPU (Processor / Chipset) Intel Xeon Silver 4309Y
Clock Speed (Processor / Chipset) 2.8 GHz
Max Turbo Speed (Processor / Chipset) 3.6 GHz
Number of Cores (Processor / Chipset) 8-core
CPU Qty (Processor / Chipset) 1
Max CPU Qty (Processor / Chipset) 2
Chipset Type (Processor / Chipset) Intel C621A
Installed Size (Cache Memory) L3 Cache - 12 MB
Cache Per Processor (Cache Memory) 12 MB
Installed Size (RAM) 32 GB / 8 TB (max)
Technology (RAM) DDR4 SDRAM - ECC
Effective Memory Speed (RAM) 2667 MHz
Rated Memory Speed (RAM) 3200 MHz
Form Factor (RAM) DIMM 288-pin
Slots (RAM) 32 (Total) / 31 (empty)
Features (RAM) Registered, Memory Mirroring, mixing of different types of memory modules is not supported, slots 17 - 32 are available in two-processor configuration only
Configuration Features (RAM) 1 x 32 GB
Type (Hard Drive) No HDD
Type (Storage Controller) 1 x RAID - PCIe 3.0 x8
Controller Interface Type (Storage Controller) SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name (Storage Controller) ThinkSystem RAID 930-8i
Channel Qty (Storage Controller) 8
RAID Level (Storage Controller) RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Buffer Size (Storage Controller) 2 GB
Type (Optical Storage) No optical drive
Monitor Type (Monitor) None.
Graphics Processor (Graphics Controller) Matrox G200
Video Memory (Graphics Controller) 16 MB
Video Interfaces (Graphics Controller) VGA
Remote Management Controller (Networking) XClarity Controller (XCC) Enterprise
Bays (Expansion / Connectivity) 8 (total) / 8 (free) x hot-swap 2.5"
Slots (Expansion / Connectivity) 1 (total) / 1 (free) x PCIe 4.0 x16 / Open Compute Project mezzanine (OCP) 3.0 2 (total) / 2 (free) x PCIe 4.0 x16 (low-profile)
Interfaces (Expansion / Connectivity) 4 x USB 3.1 Gen 1 (1 front, 3 rear) 1 x USB 2.0 (1 in front) 2 x VGA (1 front, 1 rear) 1 x management 1 x diagnostics 1 x USB 3.1 Gen 1 (1 internal)
Theft/Intrusion Protection (Miscellaneous) Chassis intrusion switch
Compliant Standards (Miscellaneous) BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, CCC, FCC Part 15 A, GB 17625.1, CECP, VCCI Class A, EN 50581, GB 4943.1, KN35, UL 2819, AS/NZS CISPR 32 Class A, KN32 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, EN 55035, CISPR 35, CELP, HJ 2507-2011, CNS 15663 section 5, TP EAC 037/2016, AS/NZS 62368.1, ANSI/UL 62368-1, ICES-003 issue 7 Class A, GB/T9254, CQC3135
Device Type (Power) Power supply - hot-plug
Power Redundancy (Power) Optional
Power Redundancy Scheme (Power) 1+1 (with optional power supply)
Installed Qty (Power) 1
Max Supported Qty (Power) 2
Voltage Required (Power) AC 100-240 V (50/60 Hz)
Power Provided (Power) 1100 Watt
80 PLUS Certification (Power) 80 PLUS Titanium
OS Provided (Operating System / Software) No operating system
EPEAT Compliant (Sustainability Information) EPEAT Bronze
ENERGY STAR Certified (Sustainability Information) Yes
ENERGY STAR Version (Sustainability Information) 3.0
Service & Support (Manufacturer Warranty) Limited warranty - 3 years - on-site - response time: next business day
Dimensions & Weight Details (Dimensions & Weight) 58.7 cm - 99.8 cm - 22.5 cm
Width (Dimensions & Weight) 44 cm
Depth (Dimensions & Weight) 77.3 cm
Height (Dimensions & Weight) 4.3 cm
Weight (Dimensions & Weight) 20.8 kg
