Характеристики

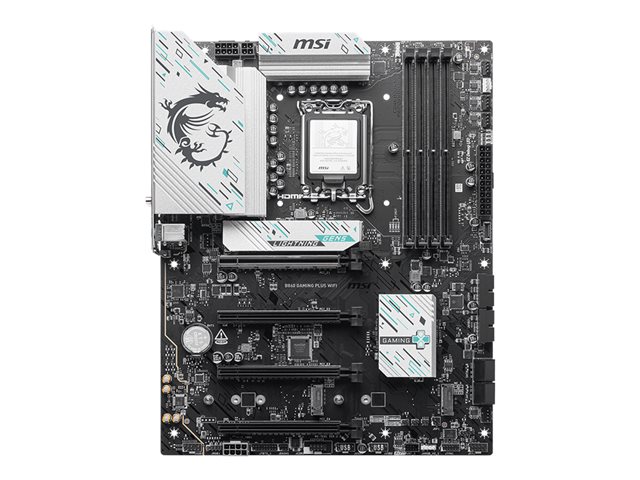

| Product Type (General) | Motherboard - ATX |
| Chipset Type (General) | Intel B860 |
| Processor Socket (General) | LGA1851 Socket |
| Max Processors Qty (General) | 1 |
| Compatible Processors (General) | (supports Intel Core Ultra processors (Series 2)) |
| Max Size (Supported RAM) | 256 GB |
| Technology (Supported RAM) | DDR5 |
| Bus Clock (Supported RAM) | 4400 MHz (O.C.), 3600 MHz (O.C.), 3200 MHz (O.C.), 2400 MHz |
| Supported RAM Integrity Check (Supported RAM) | Non-ECC, on-die ECC |
| Registered or Buffered (Supported RAM) | Unbuffered |
| Features (Supported RAM) | Intel Extreme Memory Profiles (XMP) 3.0, dual channel memory architecture |
| Type (Audio) | HD Audio (8-channel) |
| Audio Codec (Audio) | Realtek ALC897 |
| Compliant Standards (Audio) | High Definition Audio |
| Network Interfaces (LAN) | 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Expansion Slots (Expansion / Connectivity) | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 2 x PCIe 4.0 x16 (x1 mode) 1 x PCIe 4.0 x16 (x4 mode) 2 x M.2 socket (2260/2280 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces (Expansion / Connectivity) | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces (Expansion / Connectivity) | 1 x HDMI 1 x DisplayPort 1 x Thunderbolt 4/DisplayPort/USB4 4 x USB 2.0 2 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 2 x aerial 1 x LAN (5Gigabit Ethernet) 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack |
| Internal Interfaces (Expansion / Connectivity) | 1 x USB-C 3.2 Gen 2 - header 4 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x serial - header 1 x Thunderbolt 5 - header 1 x SPI - header |
| Power Connectors (Expansion / Connectivity) | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector, 8-pin PCI Express power connector |
| BIOS Type (Features) | AMI |
| BIOS Features (Features) | MSI ClickBIOS |
| Hardware Features (Features) | EZ Conn-Design, Clear CMOS Button, 12+1+1 Phase Power Design, EZ PCie Clip II, pre-mounted I/O shield, MSI Audio Boost, EZ Debug LED, MSI Steel Armor, EZ M.2 Sheild FROZR II, 6 Layer PCB, MSI Core Boost, Enlarged Chipset Heatsink, Extended Heatsink Design |
| Included Accessories (Miscellaneous) | EZ Wi-Fi antenna, EZ M.2 clip II, EZ M.2 clip II remover, 1 to 2 EZ Conn-Cable |
| Cables Included (Miscellaneous) | 1 x Serial ATA cable |
| Width (Miscellaneous) | 30.48 cm |
| Depth (Miscellaneous) | 24.384 cm |
| Package Details (Miscellaneous) | Box |
