Характеристики

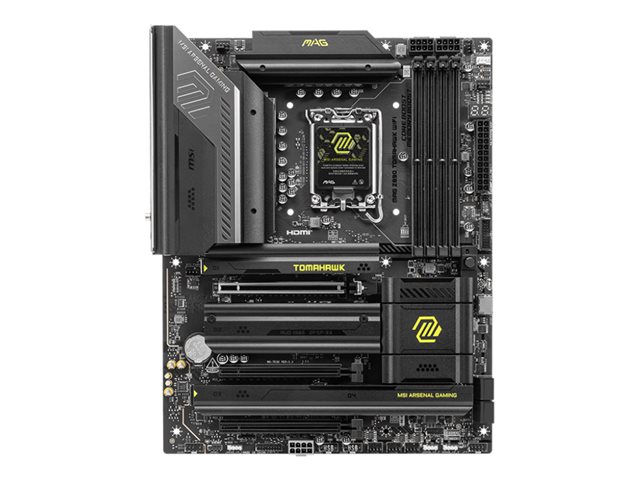

| Product Type (General) | Motherboard - ATX |
| Chipset Type (General) | Intel Z890 / Nuvoton NCT6687D-M |
| Processor Socket (General) | LGA1851 Socket |
| Max Processors Qty (General) | 1 |
| Compatible Processors (General) | (supports Intel Core Ultra processors (Series 2)) |
| Max Size (Supported RAM) | 256 GB |
| Technology (Supported RAM) | DDR5 |
| Bus Clock (Supported RAM) | 2400 MHz, 2400 MHz (O.C.), 3200 MHz, 3200 MHz (O.C.), 4600 MHz (O.C.), 3600 MHz (O.C.) |
| Supported RAM Integrity Check (Supported RAM) | Non-ECC |
| Registered or Buffered (Supported RAM) | Unbuffered |
| Features (Supported RAM) | Intel Extreme Memory Profiles (XMP) 3.0, dual channel memory architecture |
| Type (Audio) | HD Audio (8-channel) |
| Audio Codec (Audio) | Realtek ALC1220P |
| Compliant Standards (Audio) | High Definition Audio |
| Network Controller (LAN) | Intel Killer BE1750x / Intel Killer E5000 |
| Network Interfaces (LAN) | 5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Expansion Slots (Expansion / Connectivity) | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 2 x PCIe 4.0 x4 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) 2 x (2260/2280 M.2 Key M slot) 1 x M.2 socket (Key E) |
| Storage Interfaces (Expansion / Connectivity) | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces (Expansion / Connectivity) | 1 x HDMI 2 x Thunderbolt 4 2 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen 2 4 x USB 3.2 Gen 1 1 x LAN (5Gigabit Ethernet) 2 x aerial 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x SPDIF out |
| Internal Interfaces (Expansion / Connectivity) | 1 x USB-C 3.2 Gen 2x2 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x SPI - header |
| Power Connectors (Expansion / Connectivity) | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector |
| BIOS Type (Features) | AMI |
| BIOS Features (Features) | UEFI BIOS, ACPI 6.5 support, SMBIOS 3.7 support, MSI ClickBIOS |
| Hardware Monitoring (Features) | Temperature detection, fan speed detection, fan control |
| Hardware Features (Features) | CUDIMM support, Clear CMOS Button, flash BIOS button, Frozr AI Cooling, MSI AI Engine, MSI Mystic Light, Super Charger+, MSI EZ DIY, EZ Conn-Design, EZ Debug LED, EZ LED control, EZ M.2 Clip II, EZ M.2 Sheild FROZR II, EZ PCIe Release, MSI Steel Armor II, pre-mounted I/O shield, Extended Heatsink Design, 2oz Copper PCB, lightning gen4 solution, lightning gen5 solution, MSI Audio Boost 4, MSI Core Boost, MSI Memory Boost, VRM heatsink design, MSI EZ OC, 16+1+1+1 Phase Power Design, 6 Layer PCB, Enlarged Chipset Heatsink |
| Included Accessories (Miscellaneous) | USB drive, EZ front panel cable, 1 to 3 EZ Conn-Cable, EZ Wi-Fi antenna, cable sticker, 2 x EZ M.2 clip II, EZ M.2 clip II remover |
| Cables Included (Miscellaneous) | 2 x Serial ATA cable |
| Software Included (Miscellaneous) | Drivers & Utilities, MSI Center, Adobe Creative Cloud (free trial), AIDA64 Extreme - MSI Edition, MSI CPU-Z, Norton 360, Intel Extreme Tuning Utility, Intel Killer Networking |
| Width (Miscellaneous) | 30.5 cm |
| Depth (Miscellaneous) | 24.4 cm |
