Характеристики

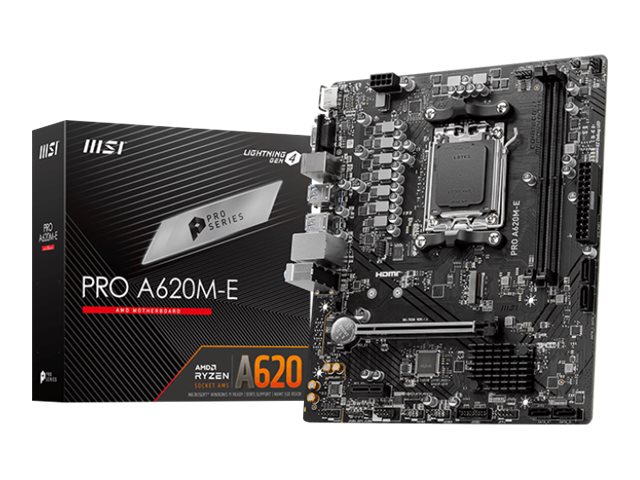

| Product Type (General) | Motherboard - micro ATX |
| Chipset Type (General) | AMD A620 |
| Processor Socket (General) | Socket AM5 |
| Max Processors Qty (General) | 1 |
| Compatible Processors (General) | Ryzen (supports Ryzen 7000 Series) |
| Max Size (Supported RAM) | 96 GB |
| Technology (Supported RAM) | DDR5 |
| Bus Clock (Supported RAM) | 4800 MHz, 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.) |
| Supported RAM Integrity Check (Supported RAM) | Non-ECC |
| Registered or Buffered (Supported RAM) | Unbuffered |
| Features (Supported RAM) | Dual channel memory architecture, AMD EXPO technology |
| Type (Audio) | HD Audio (8-channel) |
| Audio Codec (Audio) | Realtek ALC897 |
| Compliant Standards (Audio) | High Definition Audio |
| Network Controller (LAN) | Realtek RTL8111H |
| Network Interfaces (LAN) | Gigabit Ethernet |
| Expansion Slots (Expansion / Connectivity) | 1 x CPU 2 x DIMM 288-pin 1 x PCIe 4.0 x16 1 x PCIe 3.0 x1 1 x M.2 socket (2260/2280 M.2 Key M slot) |
| Storage Interfaces (Expansion / Connectivity) | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces (Expansion / Connectivity) | 1 x HDMI 1 x VGA 4 x USB 3.2 Gen 1 2 x USB 2.0 1 x LAN (Gigabit Ethernet) PS/2 keyboard 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack PS/2 mouse |
| Internal Interfaces (Expansion / Connectivity) | 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x SPI - header 1 x serial - header |
| Power Connectors (Expansion / Connectivity) | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type (Features) | AMI |
| BIOS Features (Features) | MSI ClickBIOS 5 |
| Hardware Features (Features) | Chassis intrusion detection, Debug LED, MSI Memory Boost, MSI Core Boost, DIY Friendly Design, MSI Steel Armor, Surface Mount Technology (SMT) |
| Included Accessories (Miscellaneous) | IO shield, m.2 screw / standoff sets |
| Cables Included (Miscellaneous) | 1 x Serial ATA cable |
| Software Included (Miscellaneous) | MSI Center, AIDA64 Extreme (60 days trial) |
| Compliant Standards (Miscellaneous) | FCC Part 15 Class B, WEEE, BSMI |
| Width (Miscellaneous) | 21.1 cm |
| Depth (Miscellaneous) | 24.4 cm |
