Характеристики

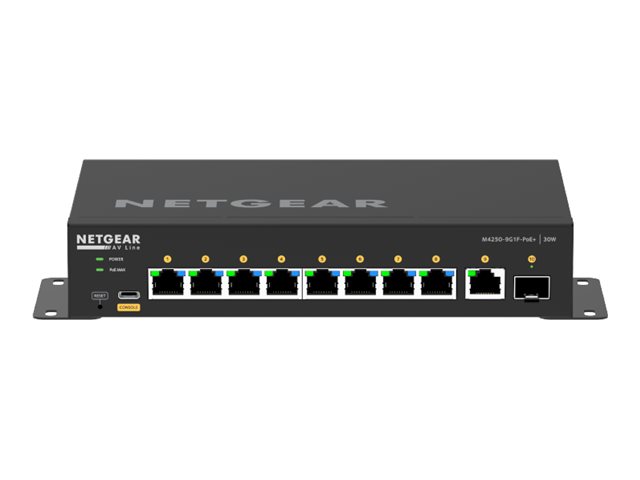

| Device Type (General) | Switch - 10 ports - L3 - Managed |
| Enclosure Type (General) | Side to side airflow desktop |
| Subtype (General) | Gigabit Ethernet |
| Ports (General) | 8 x 10/100/1000 (8 PoE+) + 1 x 10/100/1000 + 1 x Gigabit SFP |
| Power Over Ethernet (PoE) (General) | PoE+ |
| PoE Budget (General) | 110 W |
| Performance (General) | Switching capacity: 20 Gbps Throughput (64-byte packet size): 14.88 Mpps Latency (1 Gbps): < 2.27 µs |
| Capacity (General) | VLANs supported: 4093 ARP entries: 4000 Multicast entries (IPv4): 512 Multicast entries (IPv6): 128 Jumbo frame size: up to 12000 IGMP multicast groups: 2000 MSTP instances: 16 PVST instances: 32 |
| MAC Address Table Size (General) | 16K entries |
| Jumbo Frame Support (General) | 12KB |
| Routing Protocol (General) | IGMP, IGMPv2, IGMPv3, MLDv2, static IPv4 routing, static IPv6 routing, RIP, PIM-SM, PIM-DM, PIM-SSM |
| Remote Management Protocol (General) | HTTPS, CLI, Telnet, SSH, SNMP, RADIUS, TACACS+, RMON 1, RMON 2, RMON 9, RMON 3, SNMP 1, SNMP 2, SNMP 3 |
| Encryption Algorithm (General) | TLS 1.2, SSL 3.0 |
| Features (General) | IGMP support, AVB, PoE timer, MIB support, RSPAN, LLDP-MED, policy based routing, PTP, STP support, MTP, Rapid Reconfiguration of Spanning Tree (RSTP), BPDU, STRG, Root Guard, GVRP, GMRP, LACP support, DHCP snooping, DAI, IP source guard, DHCP relay, LLDP support, AAA, sFlow, PIM, MVRP, LACP, LAG, Private VLAN, VLAN support, DHCP server, QoS, DoS attack prevention, 16MB packet buffer, fanless |
| Compliant Standards (General) | IEEE 802.3at, IEEE 802.3af, IEEE 802.1ak, IEEE 802.1as, IEEE 802.1Qat, IEEE 802.1Qav, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1ab (LLDP), IEEE 802.3ad (LACP) |
| Processor (General) | X ARM A9: 1.25 GHz |
| RAM (General) | 2 GB |
| Flash Memory (General) | 256 MB |
| Interfaces (Expansion / Connectivity) | 9 x 10/100/1000 Base-T RJ-45 8 ports (PoE+) 1 x 10GBase-X SFP 1 x management (Gigabit LAN) RJ-45 1 x console RJ-45 1 x USB Type A 1 x console (USB) Type C |
| Power Device (Power) | External power adapter |
| Installed Qty (Power) | 1 |
| Included Accessories (Miscellaneous) | Foot pad set, 2 x SFP slot caps |
| Cables Included (Miscellaneous) | USB-C to USB-A cable |
| Compliant Standards (Miscellaneous) | FCC CFR47 Part 15 B Class A, ANSI C63.4:2014, ISED, ICES-003:2016 issue 7 Class A, EN 55032:2015 Class A, EN 61000-3-2:2014 Class A, EN 61000-3-3:2013, EN 55024:2010, EN 55035:2017, AS/NZS CISPR32:2015 Class A, CCC, GB/T9254-2008 Class A, VCCI-CISPR 32:2016 Class A, KC, KN32 Class A, KN35 Class A, EAC, IEC 62311, GOST 30804.3.2-2013, GOST 30804.3.3-2013, GOST 30805.22-2013, GOST CISPR 24-2013, BSMI, CNS 13438 Class A, IEC 62368-1 Second Edition, IEC 60950-1 Second Edition, CB, CSA, RCM |
| Localisation (Miscellaneous) | Europe |
| Width (Dimensions & Weight) | 21 cm |
| Depth (Dimensions & Weight) | 14 cm |
| Height (Dimensions & Weight) | 4 cm |
| Weight (Dimensions & Weight) | 965 g |
| Service & Support (Manufacturer Warranty) | Limited warranty - lifetime |
| Min Operating Temperature (Environmental Parameters) | 0 °C |
| Max Operating Temperature (Environmental Parameters) | 45 °C |
| Humidity Range Operating (Environmental Parameters) | 90% (non-condensing) |
| Min Storage Temperature (Environmental Parameters) | -20 °C |
| Max Storage Temperature (Environmental Parameters) | 70 °C |
| Humidity Range Storage (Environmental Parameters) | 95% (non-condensing) |
