Характеристики

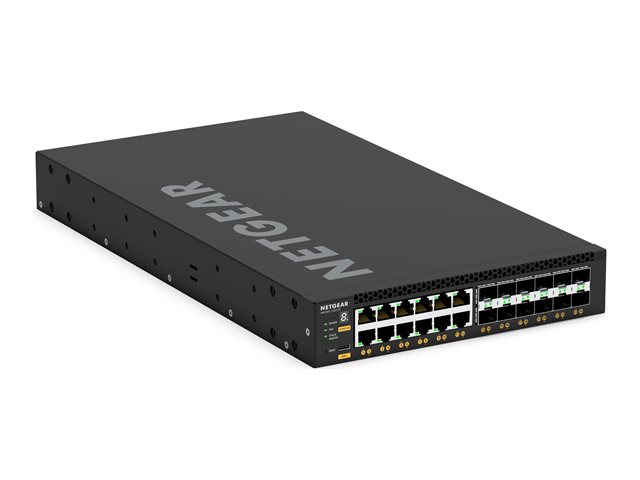

| Device Type (General) | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type (General) | Front to back airflow rack-mountable 1U |
| Subtype (General) | 10 Gigabit Ethernet |
| Ports (General) | 12 x 1/2.5/5/10GBase-T + 12 x SFP+ |
| Performance (General) | Routing/switching capacity: 480 Gbps Throughput (64-byte packet size): 357.12 Mpps 10 Gbps copper latency (64-byte packets): < 2.29 µs 10 Gbps fibre latency (64-byte packets): < 0.72 µs Latency (1 Gbps): < 2.14 µs |
| Capacity (General) | Packet buffer size: 32 MB Multicast entries (IPv4): 512 Multicast entries (IPv6): 256 VLANs supported: 4000 Jumbo frame size: up to 12000 IGMP multicast groups: 2000 DHCP users: 2000 ARP entries: 4000 NDP entries: 512 |
| MAC Address Table Size (General) | 16K entries |
| Routing Protocol (General) | Policy-based routing (PBR), RIP, VRRP, OSPF, PIM-DM, PIM-SM, PIM-SSM, IGMP, IGMPv3, MLDv2, RSTP |
| Remote Management Protocol (General) | SNMP 3, HTTPS, CLI, Telnet, SSH-2, MIB, RSTP, DHCP, RMON |
| Encryption Algorithm (General) | SSL 3.0, TLS 2.0, 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, SHA, MD5 |
| Authentication Method (General) | TACACS, RADIUS, Secure Shell (SSH) |
| Features (General) | Jumbo Frames support, LLDP-MED, RSPAN, PTPv2 TC support, MMRP, MVRP, BPDU, STRG, GMRP, GVRP, DAI, IP source guard, DHCPv4 server, DHCPv6 server, proxy ARP, sFlow, BOOTP support, ARP support, DoS attack prevention, DiffServ support, NSF, LACP, Quad-core CPU |
| Compliant Standards (General) | IEEE 802.1as, IEEE 802.1Qav, IEEE 802.1Qat, IEEE 802.1ak |
| Processor (General) | 1 x ARM Cortex-A57: 1.8 GHz |
| RAM (General) | 2 GB DDR4 SDRAM |
| Flash Memory (General) | 512 MB |
| Interfaces (Expansion / Connectivity) | 12 x 10GBase-X SFP+ 12 x 10GBase-T RJ-45 1 x management (Gigabit LAN) RJ-45 2 x USB Type A 1 x console (USB) Type C |
| Power Device (Power) | Internal power supply |
| Installed Qty (Power) | 1 |
| Power Provided (Power) | 240 Watt |
| Power Consumption Operational (Power) | 95.8 Watt |
| Power Consumption Stand by (Power) | 34 Watt |
| Included Accessories (Miscellaneous) | Rubber feet, mounting brackets |
| Cables Included (Miscellaneous) | 1 x console cable |
| Rack Mounting Kit (Miscellaneous) | Included |
| Compliant Standards (Miscellaneous) | SCCP, IEEE 1588, AAA, AN/NZS 60950.1:2015, ANSI C63.4:2014, AS/NZS CISPR32:2013 Class A, BSMI CNS 13428, BSMI CNS 14336-1, CCC, CISPR 32:2012, EN 55024:2010, EN 55032:2012/AC:2013, EN 60950, EN 60950-1:2016+A11:2009+A1:2010+A12:2011+A2:2013, EN 61000-3-2 Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, FCC CFR 47 Part 15 Class A, GB 4943.1-2011, GB/T9254-2008 Class A, GB4943.1-2001, ICES-003:2016 issue 6 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, ISED, RCM, UL 1950, VCCI-CISPR 32:2016 Class A, YD/T993-1998 |
| Localisation (Miscellaneous) | Europe, North America, United Kingdom |
| Width (Dimensions & Weight) | 22 cm |
| Depth (Dimensions & Weight) | 4.32 cm |
| Height (Dimensions & Weight) | 40 cm |
| Weight (Dimensions & Weight) | 9.48 kg |
| Service & Support (Manufacturer Warranty) | Limited warranty - lifetime |
| Min Operating Temperature (Environmental Parameters) | 0 °C |
| Max Operating Temperature (Environmental Parameters) | 50 °C |
| Humidity Range Operating (Environmental Parameters) | 90% (non-condensing) |
| Min Storage Temperature (Environmental Parameters) | -20 °C |
| Max Storage Temperature (Environmental Parameters) | 70 °C |
| Humidity Range Storage (Environmental Parameters) | 95% (non-condensing) |
