ZyXEL XGS2220-30HP

Запитай

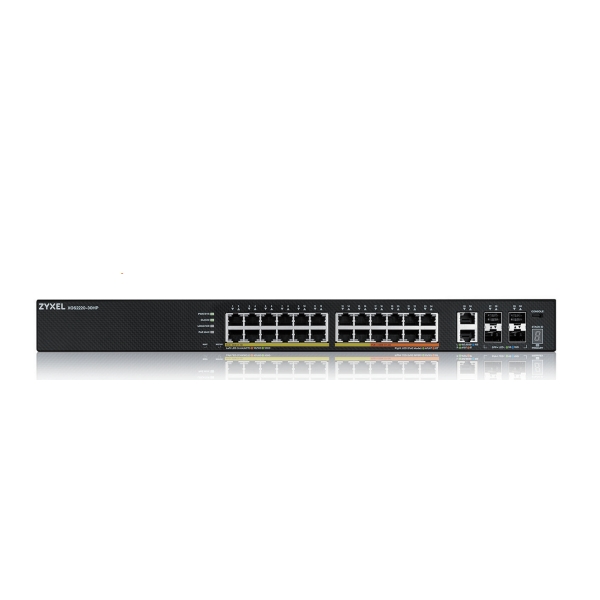

ZyXEL XGS2220-30HP, L3 Access Switch, 400W PoE, 16xPoE+/10xPoE++, 24x1G RJ45 2x10mG RJ45, 4x10G SFP+ Uplink, incl. 1 yr NebulaFlex Pro


Наличност: с поръчка
2 733.18лв. с ДДС

Продуктов код: XGS2220-30HP-EU0101F

Характеристики

Суич, тип Fixed Port, Layer 3 Access
Общ брой портове 30
Основни портове, тип 24x10/100/1000Base-T
Power Over Ethernet (PoE) 26 PoE ports: 16x Gigabit RJ-45 PoE+ ports + 8x Gigabit RJ-45 PoE++ (60 W) ports + 2x 10G Multi-Gigabit (1G/2.5G/5G/10G) RJ-45 PoE++ (60 W) ports
Uplink портове 4x10GE SFP, 2x10GBase-T
Свободни (10GB) слотове -
Управление Standalone management by Web interface; Cloud management by Nebula Control Center; Management through Console, Telnet, SNMP; Multilevel CLI; DHCP
Stackable Physical stacking (In the future firmware release)
Fans 1 x smart fan
Захранване 100 - 240 V AC, 50/60 Hz; Max. power consumption: 37.62W
Routing Static; Static route: 64
Памет (Flash, RAM) 64 MB/1 GB (Flash/RAM)
Капацитет за маршрутизиране/превключване, Gbps 168 Gbps
Пропускателна способност, Mpps 125 Mpps
MAC адреси 32 K
VLAN (брой, стандарти) 802.1Q static VLANs/dynamic VLANs: 4 K/4 K; VLAN isolation; Port-based/Vendor ID based/Protocol-based/IP subnet-based/MAC-based/Private/Voice VLAN; Independent VLAN Learning (IVL); VLAN Translation/trunking/mapping; QinQ; GVRP; L2PT
QoS No. of hardware queues per port (Standalone/stacking): 8*/6; Storm control and event log; Port-based rate limiting; Rate limiting per IP/TCP/UDP per port; Policy-based rate limiting; 802.3x flow control; 802.1p Class of Service; DSCP
L2 мрежови стандарти IEEE 802.3z, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3ae, IEEE 802.1X
L3 мрежови стандарти IEEE 802.1D Spanning Tree Protocol (STP); IEEE 802.1w Rapid Spanning Tree Protocol (RSTP); IEEE 802.1s Multiple Spanning Tree Protocol (MSTP); IEEE 802.3ad LACP
IPv6 functionality Max. 1 K IPv4 entries; Max. 512 IPv6 entries; IP source guard (IPv4*/IPv6); ACL packet filtering (IPv4/IPv6); Syslog (IPv4/IPv6); IPv6 over Ethernet (RFC 2464); IPv6 addressing architecture (RFC 4291); IPv6 binding- static/dynamic
Сигурност Port security; Layer 2 MAC filtering; Layer 3 IP filtering; Layer 4 TCP/UDP socket filtering; Static MAC forwarding; RADIUS; TACACS+; SSH v2; SSL; DHCP;
Размери (Ш, Д, В), mm 441 x 330 x 44 mm
Опция за монтаж Rackmount
Други Rack mounting kit included
